MCPIN-T18L-001
Inductive Proximity Sensor, Long Housing, M18, 4 mm, NPN, 10 V to 30 V, Pre-wired

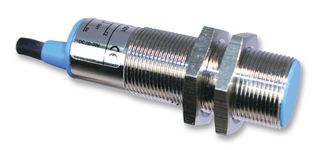

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP
Manufacturer Part NoMCPIN-T18L-001
Order Code2218040
Product RangeMCPIN Series
Technical Datasheet
234 In Stock
Need more?
EXPRESS Delivery in 1-2 business days
Order before 5pm
FREE Delivery Available
on orders €0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (inc VAT) |
|---|---|
| 1+ | €17.750 (€21.8325) |
| 10+ | €16.130 (€19.8399) |
| 25+ | €14.790 (€18.1917) |
| 50+ | €13.650 (€16.7895) |
| 100+ | €12.680 (€15.5964) |
| 200+ | €11.830 (€14.5509) |
Price for:Each
Minimum: 1
Multiple: 1
€17.75 (€21.83 inc VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP
Manufacturer Part NoMCPIN-T18L-001
Order Code2218040
Product RangeMCPIN Series
Technical Datasheet
Sensor TypeInductive Proximity Sensor
Sensing Range Max4mm
Operating Temperature Max70°C
Sensing Distance Min-
Thread Size - MetricM18
Sensing Distance Max4mm
Sensor Output TypeNPN-NO
Supply Voltage DC Min10V
Sensing Distance Nom-
Supply Voltage Min10VDC
Supply Voltage DC Max30V
Supply Voltage Max30VDC
Sensor Output Type3-Wire, NPN, NO
Sensor Case / PackageCylindrical M18 Thread
Sensor TerminalsCable
Sensor Body MaterialBrass
IP RatingIP67
Operating Temperature Min-20°C
Product RangeMCPIN Series
Product Overview
The MCPIN-T18L-001 is a cylindrical Inductive Sensor with 3-wire and M18 long housing. This NPN NO output shielded sensor features LED operation indication lamp and ferrous standard sensing object.
- Over-current protection
- IP67 Protection rating
- ±200mA Current output
- -20 to 70°C Ambient temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Sensing & Instrumentation
Technical Specifications
Sensor Type
Inductive Proximity Sensor
Operating Temperature Max
70°C
Thread Size - Metric
M18
Sensor Output Type
NPN-NO
Sensing Distance Nom
-
Supply Voltage DC Max
30V
Sensor Output Type
3-Wire, NPN, NO
Sensor Terminals
Cable
IP Rating
IP67
Product Range
MCPIN Series
Sensing Range Max
4mm
Sensing Distance Min
-
Sensing Distance Max
4mm
Supply Voltage DC Min
10V
Supply Voltage Min
10VDC
Supply Voltage Max
30VDC
Sensor Case / Package
Cylindrical M18 Thread
Sensor Body Material
Brass
Operating Temperature Min
-20°C
