WXD 2010
Rework Station, Dual Channel, 550°C, 200W, 230VAC, EU/UK Plug

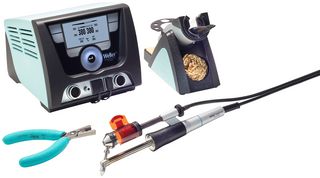

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWELLER
Manufacturer Part NoWXD 2010
Order Code2629093
Also Known AsT0053428399N, GTIN UPC EAN: 4003019427857
Technical Datasheet
12 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €1,415.000 |
Price for:Each
Minimum: 1
Multiple: 1
€1,415.00 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerWELLER
Manufacturer Part NoWXD 2010
Order Code2629093
Also Known AsT0053428399N, GTIN UPC EAN: 4003019427857
Technical Datasheet
Supply Voltage VAC230V
Heat Temperature Max550°C
Output Power200W
Kit ContentsWXD2 Power Unit, WXDP120 Desoldering Iron, WDH70 Safety Rest
Product Range-
Plug TypeEU, UK
SVHCNo SVHC (17-Dec-2015)
Product Overview
WXD 2010 is a 2 channels desoldering station WXD 2 with desoldering iron WXDP 120. It features USB interface in front of firmware updates, parameterization and monitoring USB interface and supports all standard USB flash drive types.
- Soldering and desoldering tools with intelligent WX technology
- Connection to external compressed air supply required
- Energy effective : automatic stand-by mode for tools
- Patented, ESD safe glass display, simple and fast setting of soldering parameter
- 135mm height, 174mm length
- 35l/min air consumption, air pressure range from 58 to 87psi
- Via 3.5mm pawl socket on back of unit equipotential bonding socket
- 0.7bar noise level (distance 1m) dB(A)
- 200W (255W) power, ±9°C temperature accuracy, 230V voltage
- Temperature range from 50 to 550°C
Contents
2 channel power unit (WXD 2), PDN pliers for changing nozzles.
Technical Specifications
Supply Voltage VAC
230V
Output Power
200W
Product Range
-
SVHC
No SVHC (17-Dec-2015)
Heat Temperature Max
550°C
Kit Contents
WXD2 Power Unit, WXDP120 Desoldering Iron, WDH70 Safety Rest
Plug Type
EU, UK
