TRINAMIC / ANALOG DEVICES TOSV-SENSOR-REF

Add on Board, Pressure Sensor, Open Source Ventilator, Reference Design Board

TRINAMIC / ANALOG DEVICES TOSV-SENSOR-REF
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
TOSV-SENSOR-REF
Order Code:
3566065
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
TOSV-SENSOR-REF   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

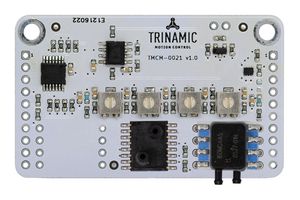

The TOSV-SENSOR-REF is the pressure sensor add-on board for the TMC4671+TMC6100-TOSV-REF. It is a small sized PCB that fits onto the add-on board headers (see previous section) of the TMC4671+TMC6100- TOSV-REF.
  • Size is 34x56 (mm)
  • 2x analogue single ended pressure sensors
  • 1x I2C differential pressure sensor for flow measurement
  • 1x RS485 transceiver to extend the connectivity of the UART interface of TMC4671+TMC6100-TOSVREF
  • 1x I2C ADC connected to the SBC header connector that monitors analogue pressure sensors' outputs
  • 4x digital outputs that are connected to 4 hysteresis comparators with adjustable levels
