P6015A

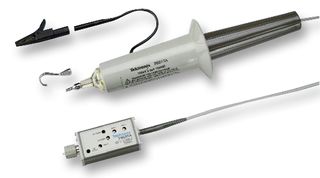

P6015A -TEKTRONIX - Oscilloscope Probe, High-Voltage Passive Probe, 75 MHz, 20 kV, 1000:1
- Manufacturer:
- TEKTRONIX TEKTRONIX
- Manufacturer Part No:
- P6015A
- Order Code:
- 4352580
- Technical Datasheet:
- P6015A Datasheet
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- High-Voltage Passive Probe
- :
- 75MHz
- :
- 20kV
- :
- 1000:1
- :
- Tektronix Digital Oscilloscopes
- :
- -
Technical Docs (3)
Product Overview
The P6015A from Tektronix is a 75MHz industry standard passive high voltage probe. It is a safe high voltage probe solutions for ground referenced voltage testing. This probe is used for heavy duty high performance measurements. It can measure DC voltages up to 20KVrms and pulses up to 40KV peak (100ms duration). The 75MHz bandwidth enables users to capture fast and high voltage signals. The P6015A uses an environmentally safe silicone compound for dielectric and never needs refilling. It features small compensation box that fits on adjacent amplifier inputs and readout option for use with most Tektronix digital scopes. With readout option, the displayed voltage amplitude values will be tactual signal value rather than understated by a factor of 1000.
- DC to 75MHz bandwidth
- 1000X attenuation
- Nominal length is 3m
- Rise time is typically 4ns
- Compensation range 7pf to 49pf
- UL3111-1, EN61010-1, IEC61010-2-031, CSA1010.1, CSA1010.2.031 approved
Applications
Test & Measurement, Power Management
Contents
P6015A passive probe, Hook probe tip (206-0463-xx), Banana plug tip (134-0016-xx), Crocodile clip (344-0461-xx), Ground lead (196-3363-xx), Carrying case (016-1147-xx), Instruction manual (070-8223-xx).
