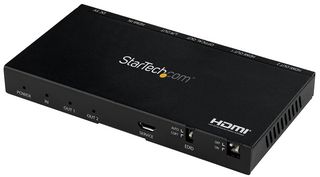

ST122HD20S

The Startech ST122HD20S allows you to easily connects a high definition video source to two separate HDMI displays. The splitter provides full support for HDMI 2.0 equipment including true 4K Ultra HD resolution and 4:4:4 chroma subsampling, with the built-in scaling function allowing it to output to two different resolutions at the same time.

• Supports true 4K resolutions up to 3840x2160 @60Hz
• Built-in scaling function, the splitter can output to two different resolutions simultaneously
• Full support for HDMI 2.0b capabilities with HDR and 4:4:4 chroma subsampling
• 7.1 Surround sound audio specification
• Integrated DAC (Digital to Analogue Converter) with flexible audio support
• Provides three audio outputs for connection to speakers/amplifiers; HDMI, 3.5mm and optical output (audio output is provided on all ports simultaneously)
• EDID Management switch with Auto/Copy functions
• Fully compliant with HDCP 2.2 and is backwards compatible
• Passive design supports cables up to maximum of 5m
• Durable steel enclosure with black finish
• Dimensions (HxWxD): 11x120x63mm
• 2 Year manufacturer warranty
• UK mains plug (type G), as used in the UK, IRL, Cyprus, Saudi Arabia, Malta and many others.

Contents

Splitter, AC adaptor (UK/EU/NA/ANZ) and user guide
