RTE0T0002LKCE00000R

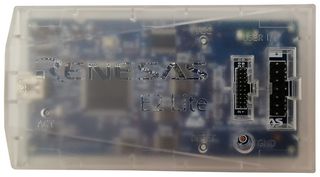

Debugger / Programmer, E2 Emulator Lite, RX, RL78 MCU Families
Image is for illustrative purposes only. Please refer to product description.
394 In Stock
Need more?
EXPRESS Delivery in 1-2 business days
Order before 5pm
FREE Delivery Available
on orders €0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (inc VAT) |
|---|---|
| 1+ | €55.810 (€68.6463) |
Price for:Each
Minimum: 1
Multiple: 1
€55.81 (€68.65 inc VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerRENESAS
Manufacturer Part NoRTE0T0002LKCE00000R
Order Code2946743
Technical Datasheet
IC Product TypeOn-Chip Debug Emulator
Silicon Family NameRX, RL78, RA
Core Architecture-
Core Sub-Architecture-
Kit ContentsE2 Emulator Lite Main Unit, USB I/F Cable, User's I/F cable
FeaturesOn-Chip Debugging, Flash Memory Programming
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
RTE0T0002LKCE00000R E2 emulator Lite is an on-chip debugging emulator and flash programmer for MCUs of the RX, RA, RL78 Families and RISC-V MCU. This model provides standard debugging functions at low cost, and is suitable for a wide range of situations, such as education, initial evaluation, and full-scale product development.
- USB 2.0, full speed PC interface
- Operating voltage range: 1.8V to 5.5V (depends on the target MCU)
- Power supply from emulator - supply current: up to 200mA, supply voltage: 3.3V only
- External dimension (except for the protruding parts): 96.2mm×52.7mm×17.2mm
- Compliance European standards: EN 55022 class A, EN 55024, US FCC standard: FCC part 15 Class A
- Affordable yet powerful debugger functionality that meets actual development needs
- Also usable as an on-board programmer
- Supports serial, JTAG, and SWD communications interfaces
Contents
E2 emulator Lite main unit, USB interface cable, User system interface cable.
Technical Specifications
IC Product Type
On-Chip Debug Emulator
Core Architecture
-
Kit Contents
E2 Emulator Lite Main Unit, USB I/F Cable, User's I/F cable
Product Range
-
Silicon Family Name
RX, RL78, RA
Core Sub-Architecture
-
Features
On-Chip Debugging, Flash Memory Programming
SVHC
No SVHC (25-Jun-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Tariff No:90308200
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.155128
WEEE Code:0303
