Transceiver Module, DALI DT8, 1-Channel, 60Hz, 230VAC, IP20


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×




Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

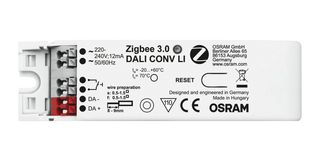

The Osram universal Zigbee 3.0 DALI CONV LI converter now allows you integrate DALI luminaires into Zigbee-based control systems. The converter also supports the dimming of DALI-based luminaires without the need of bus wiring. Compared to phase-cut dimmers, flicker effects are reduced to a minimum. The Zigbee 3.0 DALI CONV LI can control up to eight DALI LED drivers in broadcast mode and has a radio range of 15 m (no external antenna required). The converter supports DT8 tuneable white drivers. DALI devices connected are automatically detected. The converter features a bidirectional DALI interface and a Zigbee 3.0 interface. Thanks to the Zigbee 3.0 standard the device is also compatible with ZHA and ZLL control units. The integrated DALI power supply provides up to 24 mA.
  • Integrated Zigbee transceiver module
  • DALI interface for addressed or broadcast operation
  • Outputs with electronical reversible overtemperature, short circuit, overload protection
  • Support standard DALI and DALI DT8 (tunable white) control gears
  • Automatic operating mode detection after each restart
  • Zigbee 3.0 certified including enhanced security standard
  • Synchronous switching and dimming of up to 8 DALI control gears
  • Reliable dimming through digital control of the drivers
