OSRAM PL-BRICK-HP-2850-730-2X6-IP-G2

LED Modules, Street Light, 3000 K, 3754 lm, 34 V, 23.8 W, Warm White, PrevaLED BRICK HP IP G2 Series

OSRAM PL-BRICK-HP-2850-730-2X6-IP-G2
×

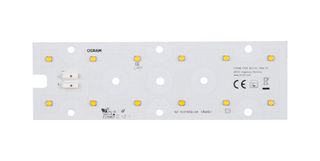

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
OSRAM OSRAM
Manufacturer Part No:
PL-BRICK-HP-2850-730-2X6-IP-G2
Order Code:
4067860
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Information


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

PrevaLED BRICK HP IP G2 LED module for industry and outdoor applications. It has 5 years system guarantee (with OPTOTRONIC control gear). It can be optimally paired with OPTOTRONIC constant current LED drivers. Compatible to optics with IP solution, e.g. Ledil STRADA-IP2x6 series. Areas of applications are area illumination for highbay light for industry and outdoor application, highbay lighting, street and area lighting, outdoor application, street and urban lighting.
  • Geometry according to Zhaga Book 19
  • Dimensions aligned with Zhaga book 19
  • Average lifetime (L80 B10) up to 100,000 h (temperature up to Tc = 85°C)
  • IP20 protection
  • Nominal current of 0.7A, nominal voltage of 34V, on-mode power of 23.8W
  • Energy consumption in on-mode (GMS) is 23.8KWh/1000h, luminous efficacy is 163lm/W
  • Correlated colour temperature CCT (GMS) is 3000K, useful luminous flux (Φuse) (GMS) is 3754lm
  • Light LED colour is white, number of LEDs per module is 12, starting time is 0.1s
  • Product weight is 40g, height is 8mm, length is 146mm and width is 45mm
  • Ambient temperature range from -20 to +70°C

57 In stock Need more?

Standard lead time for this product is 13 weeks.

Order before 6pm

With you next business day

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

€21.21
