DPI8
Panel Meter, Temperature / Process, 4-Digit, 21 mm, 240 VAC, DPi Series

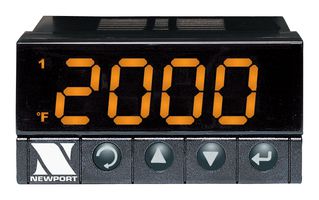

Image is for illustrative purposes only. Please refer to product description.
ManufacturerOMEGA
Manufacturer Part NoDPI8
Order Code3795386
Product RangeDPi Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €412.570 |
Price for:Each
Minimum: 1
Multiple: 1
€412.57 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMEGA
Manufacturer Part NoDPI8
Order Code3795386
Product RangeDPi Series
Technical Datasheet
No. of Digits / Alpha4
Meter FunctionTemperature / Process
Meter Range-200°C to +2320°C, 0mV to 100 mV, 0V to 1V, 0V to 10V, 0 to 20 mA
Digit Height21mm
Panel Cutout Height45mm
Panel Cutout Width92mm
Supply Voltage Min90VAC
Supply Voltage Max240VAC
Operating Temperature Min0°C
Operating Temperature Max55°C
Product RangeDPi Series
Product Overview
DPi8 is an extremely accurate digital panel meter. It handles 10 common types of thermocouples, multiple RTDs and several process (DC) voltage and current ranges. This model also features built-in excitation, 24VDC at 25mA. With its wide choice of signal inputs, this model is an excellent choice for measuring or controlling temperature with a thermocouple, RTD, or 4 to 20mA transmitter.
- Universal inputs, user-friendly, simple to configure
- High quality, powerful features, built-in excitation, temperature/process input type
- Free software download, totally programmable colour displays
- High accuracy is 0.5°C, 0.03% reading, 50ppm/°C process
- RS232 and RS485 serial communications, AC or DC powered units
- Ratiometric mode for strain gauges, programmable digital filter
- Size/cutout is 1/8 DIN, approvals are UL, C-UL, CE per 2014/35/EU
- Power is 90 to 240VAC ±10%, 50 to 400Hz, 110 to 300VDC, equivalent voltage
- Accuracy is ±0.5°C temp, 0.03% rdg, dimension is 48mm H x 96mm W x 127mm D
- Extended 5-year warranty, programmable digital filter
Technical Specifications
No. of Digits / Alpha
4
Meter Range
-200°C to +2320°C, 0mV to 100 mV, 0V to 1V, 0V to 10V, 0 to 20 mA
Panel Cutout Height
45mm
Supply Voltage Min
90VAC
Operating Temperature Min
0°C
Product Range
DPi Series
Meter Function
Temperature / Process
Digit Height
21mm
Panel Cutout Width
92mm
Supply Voltage Max
240VAC
Operating Temperature Max
55°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:90318080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.191416
WEEE Code:0000
