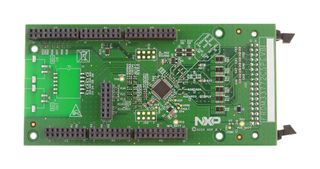

FRDM33772CSPEVB
Evaluation Board, MC33772C, Power Management, Battery, Li-Ion Battery Cell Controller
- Manufacturer:
- NXP NXP
- Manufacturer Part No:
- FRDM33772CSPEVB
- Order Code:
- 3868962
Product Overview
Evaluation board (EVB) features the MC33772C, a 6-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing and GPIOs. The kit is designed to support customer development and evaluation. The device can be connected to NXP 6-cell battery emulator or a customer Li-ion battery module with 3-6 cells in series. The battery cell information is transferred to the microcontroller unit (MCU) through an SPI interface.
- Evaluation board for MC33772C with SPI communication
- Targeted for battery management system, EV power inverter, HEV applications
- SPI communication
- 34 pin connector for 6 cell battery connections and current sensing
- 2 off board temperature sensing inputs and 2 voltage measurement inputs
- VCOM status LED indicator
- MC33772C (6 cell voltage measurements, 100mA cell balancing, diagnostic functions)
Contents
Assembled and tested evaluation board/module in anti-static bag, Quick start guide.
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Power Management - Battery
- :
- Li-Ion Battery Cell Controller
- :
- MC33772C
- :
- NXP
- :
- Evaluation Board MC33772C, In Anti-Static Bag, Battery Connection Cable, Quick-Start Guide
- :
- -
