MP009811

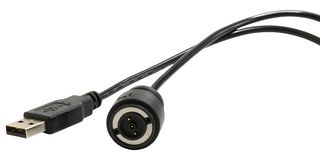

Smart Cable Assembly, USB Type A Plug, Magnetic Connector, 2 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP009811
Order Code3977148
Product RangeMP Magnetic Connectors
Technical Datasheet
28 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €33.030 |
| 5+ | €27.520 |
Price for:Each
Minimum: 1
Multiple: 1
€33.03 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP009811
Order Code3977148
Product RangeMP Magnetic Connectors
Technical Datasheet
Conversion Type-
Connector Type AUSB 2.0 A Plug
Baud Rate-
Connector Type BMagnetic 2 Position Plug
Converter Connector TypeMagnetic Connector
Current Rating5A
Cable Length - Metric2m
Chip Type-
Cable Length - Imperial6.6ft
Additional Connector-
Jacket ColourBlack
Voltage Rating30V
Product RangeMP Magnetic Connectors
SVHCTo Be Advised
Product Overview
The MP009811 from Multicomp Pro is a 2m magnetic connector adaptor to USB Type A plug.
- 2 Pin Contact
- Current rating: 5A
- Insulation Resistance: 100mΩ min
- Dielectric Withstanding Voltage : 300V AC/DC
- Contact resistance: 50mΩ
- AWG gauge : 18AWG
- Temperature Range: -20°C to 70°C
Technical Specifications
Conversion Type
-
Baud Rate
-
Converter Connector Type
Magnetic Connector
Cable Length - Metric
2m
Cable Length - Imperial
6.6ft
Jacket Colour
Black
Product Range
MP Magnetic Connectors
Connector Type A
USB 2.0 A Plug
Connector Type B
Magnetic 2 Position Plug
Current Rating
5A
Chip Type
-
Additional Connector
-
Voltage Rating
30V
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.076
WEEE Code:0314
