MDOT256064G1V-WM
Graphic OLED, 256 x 64 Pixels, White on Black, 3V, I2C, Parallel, SPI, 60.5mm x 19mm, -40 °C

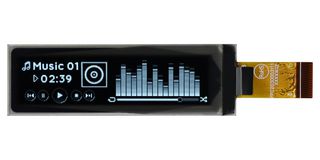

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price (inc VAT) |
|---|---|
| 1+ | €21.740 (€26.7402) |
| 5+ | €19.910 (€24.4893) |
| 10+ | €19.510 (€23.9973) |
| 50+ | €19.110 (€23.5053) |
| 100+ | €18.720 (€23.0256) |
| 250+ | €18.320 (€22.5336) |
Price for:Each
Minimum: 1
Multiple: 1
€21.74 (€26.74 inc VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOT256064G1V-WM
Order Code3407297
Technical Datasheet
Resolution256 x 64 Pixels
Display AppearanceWhite on Black
Logic Voltage3V
Interface TypeI2C, Parallel, SPI
Module Size60.5mm x 19mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOT
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Module dimension: 60.5 x 19.0 x 1.6 mm
- Active area: 51.18 x 12.78mm
- Dot Matrix: 256 x 64 Dots
- Pixel Size: 0.18 x 0.18 mm
- Pixel Pitch: 0.20 x 0.20 mm
- Display Mode: Passive Matrix
- Duty: 1/64 Duty
- Gray Scale: 4 Bits
- Display Colour: White
- IC: SSD1362
- Interface: 3 Wire and 4 Wire SPI, I2C, 6800, 8080
- Size: 2.08"
Technical Specifications
Resolution
256 x 64 Pixels
Logic Voltage
3V
Module Size
60.5mm x 19mm
Operating Temperature Max
80°C
Product Range
-
Display Appearance
White on Black
Interface Type
I2C, Parallel, SPI
Operating Temperature Min
-40°C
Display Construction
COT
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.025
WEEE Code:1100
