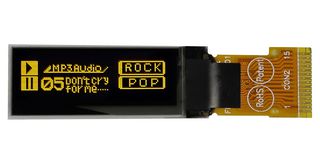

MDOG128032C2V-YS
Graphic OLED, 128 x 32 Pixels, Yellow on Black, 3V, SPI, 30mm x 11.5mm, -40 °C
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOG128032C2V-YS
Order Code3759041
Product RangeMDOG128032C2
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price (inc VAT) |
|---|---|
| 1+ | €6.900 (€8.487) |
| 5+ | €6.310 (€7.7613) |
| 10+ | €6.180 (€7.6014) |
| 50+ | €6.060 (€7.4538) |
| 100+ | €5.930 (€7.2939) |
| 250+ | €5.810 (€7.1463) |
Price for:Each
Minimum: 1
Multiple: 1
€6.90 (€8.49 inc VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOG128032C2V-YS
Order Code3759041
Product RangeMDOG128032C2
Technical Datasheet
Resolution128 x 32 Pixels
Display AppearanceYellow on Black
Logic Voltage3V
Interface TypeSPI
Module Size30mm x 11.5mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOG
Product RangeMDOG128032C2
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Dot Matrix: 128 x 32 Dots
- Module dimension: 30.0x11.5x1.26mm
- Active Area: 22.384x5.584 mm
- Pixel Size: 0.152x0.152 mm
- Pixel Pitch: 0.175x0.175 mm
- Display Mode: Passive Matrix
- Display Colour: Yellow
- 1/32 Duty
- IC: SSD1306
- Interface: 4-wire SPI
- Size: 0.91"
Technical Specifications
Resolution
128 x 32 Pixels
Logic Voltage
3V
Module Size
30mm x 11.5mm
Operating Temperature Max
80°C
Product Range
MDOG128032C2
Display Appearance
Yellow on Black
Interface Type
SPI
Operating Temperature Min
-40°C
Display Construction
COG
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
WEEE Code:0000
