MCOT256064DY-WM
Graphic OLED, 256 x 64 Pixels, White on Black, 3V, I2C, Parallel, SPI, 82.5mm x 19mm, -40 °C

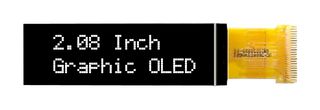

Image is for illustrative purposes only. Please refer to product description.
95 In Stock
Need more?
EXPRESS Delivery in 1-2 business days
Order before 5pm
FREE Delivery Available
on orders €0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (inc VAT) |
|---|---|
| 1+ | €28.260 (€34.7598) |
| 5+ | €27.700 (€34.071) |
Price for:Each
Minimum: 1
Multiple: 1
€28.26 (€34.76 inc VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMCOT256064DY-WM
Order Code3154954
Technical Datasheet
Resolution256 x 64 Pixels
Display AppearanceWhite on Black
Logic Voltage3V
Interface TypeI2C, Parallel, SPI
Module Size82.5mm x 19mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionTAB
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Resolution: 256x64
- Module size: 82.5x19x1.6mm
- Panel size: 60.5x19x1.6mm
- Active Area: 51.18x12.78mm
- Pixel Pitch: 0.20x0.20mm
- Pixel size: 0.18x0.18mm
Technical Specifications
Resolution
256 x 64 Pixels
Logic Voltage
3V
Module Size
82.5mm x 19mm
Operating Temperature Max
80°C
Product Range
-
Display Appearance
White on Black
Interface Type
I2C, Parallel, SPI
Operating Temperature Min
-40°C
Display Construction
TAB
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.04
WEEE Code:0000
