MCCOG22005A6W-BNMLWI

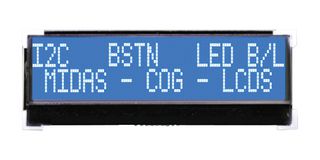

MCCOG22005A6W-BNMLWI -MIDAS - Alphanumeric LCD, 20 x 2, White on Blue, 3V to 5V, I2C, English, Japanese, Transmissive
- Manufacturer:
- MIDAS MIDAS
- Manufacturer Part No:
- MCCOG22005A6W-BNMLWI
- Order Code:
- 2218944
- Product Range
- MCCOG22005A6W Series
- Technical Datasheet:
- MCCOG22005A6W-BNMLWI Datasheet
Product Range Selector (MCCOG22005A6W Series)
See all from this product rangeProduct Overview
The MCCOG22005A6W-BNMLWI is a 20-character x 4 lines Alphanumeric LCD Display with negative transmissive polarizer and LED backlight (white). It features STN (blue) LCD panel. This system interface chip has all four kinds of interface type with MPU: 4-bit bus, 8-bit bus, serial and fast I²C interface. 4-bit bus or 8-bit bus is selected by DL bit in the instruction register. During read or write operation, two 8-bit registers are used. One is data register (DR), the other is instruction register(lR). The data register (DR) is used as temporary data storage place for being written into or read from DRAM/CGRAM/ICON RAM, target RAM is selected by RAM address setting instruction. Each internal operation, reading from or writing into RAM, is done automatically. Soto speak, after MPU reads DR data, the data in the next DDRAM/CGRAM/ICON RAM address is transferred into DR automatically.
- Alphanumeric / character LCD module
- 2 lines of 20 characters - 2 x 20 also referred to as 20 x 2
- Negative mode STN material (also referred to as BSTN)
- Appearance - white characters on blue background
- Transmissive technology, generally for indoor applications
- Chip on glass construction (COG)
- On glass controller ST7032i or equivalent
- English/Japanese font sets
- 3V to 5V logic supply, I2C interface
- Display duty 1/16, Driving bias 1/5
- White LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 8 pin SIL (bottom middle) connection, 1.27mm pitch
- Overall max dimensions - 74.2 x 25.2 x 6.3mm
- Viewing area - 61.0 x 15.1mm
- 5mm character (actual dimension 2.45 x 4.67mm)
Applications
Industrial, Imaging, Video & Vision
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 20 x 2
- :
- White on Blue
- :
- 3V to 5V
- :
- I2C
- :
- English, Japanese
- :
- Transmissive
- :
- 4.67mm
- :
- BSTN
- :
- 74.2mm x 25.2mm
- :
- -20°C
- :
- 70°C
- :
- COG
- :
- White
- :
- MCCOG22005A6W Series
