PLC-100-12
LED Driver, ITE & LED Lighting, 60 W, 12 V, 5 A, Constant Current, Constant Voltage, 90 VAC

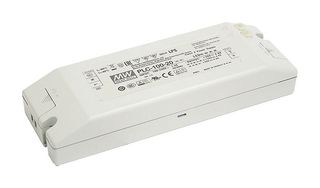

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMEAN WELL
Manufacturer Part NoPLC-100-12
Order Code4206578
Product RangePLC-100 Series
Technical Datasheet
1 In Stock
Need more?
EXPRESS Delivery in 1-2 business days
Order before 5pm
FREE Delivery Available
on orders €0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (inc VAT) |
|---|---|
| 1+ | €35.080 (€43.1484) |
| 5+ | €34.380 (€42.2874) |
| 10+ | €33.680 (€41.4264) |
| 50+ | €32.980 (€40.5654) |
Price for:Each
Minimum: 1
Multiple: 1
€35.08 (€43.15 inc VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMEAN WELL
Manufacturer Part NoPLC-100-12
Order Code4206578
Product RangePLC-100 Series
Technical Datasheet
Power Supply ApplicationsITE & LED Lighting
Output Power Max60W
Output Voltage Max12V
Output Current5A
LED Driver ModeConstant Current, Constant Voltage
Input Voltage Min90VAC
Input Voltage Max264VAC
Product RangePLC-100 Series
SVHCNo SVHC (25-Jun-2025)
Product Overview
PLC-100-12 is a PLC-100 series single output switching power supply. Safety standards are UL1310, TUV BS EN/EN60950-1, BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved.
- Universal AC input / full range, cooling by free air convection
- Protections: short circuit / overcurrent / overvoltage/ overtemperature
- Built-in active PFC function, class 2 power unit, pass LPS
- 100% full load burn-in test, high reliability, 2 years warranty
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 12VDC output voltage, 60W rated output power, 83% typical efficiency
- Input voltage rating is 90 ~ 264VAC/127 ~ 370VDC
- Working temperature range from -30 to +50℃
- Dimension (L x W x H) is 200.5 x 69.5 x 35mm
Technical Specifications
Power Supply Applications
ITE & LED Lighting
Output Voltage Max
12V
LED Driver Mode
Constant Current, Constant Voltage
Input Voltage Max
264VAC
SVHC
No SVHC (25-Jun-2025)
Output Power Max
60W
Output Current
5A
Input Voltage Min
90VAC
Product Range
PLC-100 Series
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.52
WEEE Code:0509
