LPF-C011303S

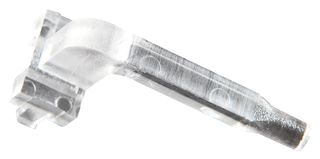

Light Pipe, Right Angle, 22 mm, 1 Pipes, Circular, PC Board, Transparent
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLUMEX
Manufacturer Part NoLPF-C011303S
Order Code2062201
Your Part Number
Technical Datasheet
2,980 In Stock
Need more?
EXPRESS Delivery in 1-2 business days
Order before 5pm
FREE Delivery Available
on orders €0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (inc VAT) |
|---|---|
| 1+ | €1.010 (€1.2423) |
| 10+ | €0.668 (€0.8216) |
| 25+ | €0.635 (€0.781) |
| 50+ | €0.602 (€0.7405) |
| 100+ | €0.569 (€0.6999) |
| 500+ | €0.415 (€0.5104) |
Price for:Each
Minimum: 1
Multiple: 1
€1.01 (€1.24 inc VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The LPF-C011303S is a 3mm stackable right angle surface-mount Circular Light Pipe, made of UL94V-0 clear PC. The TransBrite light pipe can be mounted on PC board. The end of the light pipe is diffused. It is recommended for single colour SML-LX1206 series and bi-colour SML-LX1210 series LED.
Applications
Consumer Electronics
Technical Specifications
Length
22mm
Light Pipe Shape
Circular
Light Pipe Colour
Transparent
SVHC
No SVHC (25-Jun-2025)
No. of Light Pipes
1Pipes
Light Pipe Mounting
PC Board
Product Range
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:90019000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000463
WEEE Code:0000
