FS200R12PT4BOSA1
IGBT Module, Six Pack [Full Bridge], 280 A, 1.75 V, 1 kW, 150 °C, Module

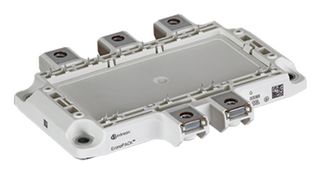

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS200R12PT4BOSA1
Order Code3294636
Product RangeEconoPACK 4
Also Known AsFS200R12PT4, SP000485586
Technical Datasheet
3 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €169.170 |
| 5+ | €165.790 |
| 10+ | €162.400 |
Price for:Each
Minimum: 1
Multiple: 1
€169.17 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS200R12PT4BOSA1
Order Code3294636
Product RangeEconoPACK 4
Also Known AsFS200R12PT4, SP000485586
Technical Datasheet
IGBT ConfigurationSix Pack [Full Bridge]
Transistor PolaritySix N Channel
DC Collector Current280A
Continuous Collector Current280A
Collector Emitter Saturation Voltage Vce(on)1.75V
Collector Emitter Saturation Voltage1.75V
Power Dissipation Pd1kW
Power Dissipation1kW
Operating Temperature Max150°C
Junction Temperature Tj Max150°C
Collector Emitter Voltage V(br)ceo1.2kV
Transistor Case StyleModule
IGBT TerminationStud
No. of Pins5Pins
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 4
SVHCNo SVHC (21-Jan-2025)
