FP50R12KT4B11BOSA1
IGBT Module, PIM Three Phase Input Rectifier, 50 A, 1.85 V, 280 W, 150 °C, Module

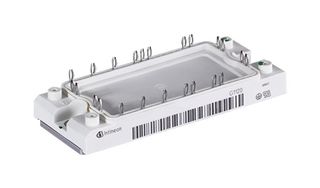

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFP50R12KT4B11BOSA1
Order Code2781246
Product RangeEconoPIM 2
Also Known AsFP50R12KT4_B11, SP000372909
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerINFINEON
Manufacturer Part NoFP50R12KT4B11BOSA1
Order Code2781246
Product RangeEconoPIM 2
Also Known AsFP50R12KT4_B11, SP000372909
Technical Datasheet
IGBT ConfigurationPIM Three Phase Input Rectifier
Transistor PolarityN Channel
DC Collector Current50A
Continuous Collector Current50A
Collector Emitter Saturation Voltage1.85V
Collector Emitter Saturation Voltage Vce(on)1.85V
Power Dissipation Pd280W
Power Dissipation280W
Operating Temperature Max150°C
Junction Temperature Tj Max150°C
Collector Emitter Voltage V(br)ceo1.2kV
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPIM 2
SVHCNo SVHC (27-Jun-2018)
