BGA824N6E6327XTSA1
RF Amplifier IC, 17 dB Gain / 0.55 dB Noise, 1.55 GHz to 1.615 GHz, 1.5 V to 3.3 V supply, TSNP-6

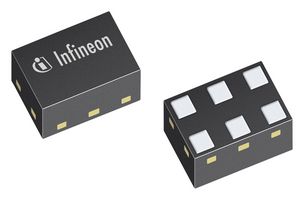

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoBGA824N6E6327XTSA1
Order Code2565690
Also Known AsBGA 824N6 E6327, SP001079364
Technical Datasheet
83,679 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €0.584 |
| 10+ | €0.505 |
| 100+ | €0.436 |
| 500+ | €0.362 |
| 1000+ | €0.348 |
| 2500+ | €0.332 |
| 5000+ | €0.316 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
€0.58 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoBGA824N6E6327XTSA1
Order Code2565690
Also Known AsBGA 824N6 E6327, SP001079364
Technical Datasheet
Frequency Min1.55GHz
Frequency Max1.615GHz
Gain17dB
Noise Figure Typ0.55dB
RF IC Case StyleTSNP
No. of Pins6Pins
Supply Voltage Min1.5V
Supply Voltage Max3.3V
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
Automotive Qualification Standard-
MSLMSL 1 - Unlimited
SVHCNo SVHC (21-Jan-2025)
Product Overview
BGA824N6E6327XTSA1 is a silicon germanium, low-noise amplifier. It is ideal for all global navigation satellite systems (GNSS) like GPS, GLONASS, Beidou, Galileo and others.
- Qualified for industrial applications according to the relevant tests of JEDEC47/20/22
- Digital on/off switch, RF output internally matched to 50 ohm
- Low external component count, 2kV HBM ESD protection (including AI-pin)
- Operating frequency range from 1164 to 1615MHz
- Supply voltage from 1.5 to 3.6V (TA=25°C, VCC=1.8V, VPON, ON=1.8V, VPON, OFF=0V, f=1550-1615MHz)
- Supply current is 3.8mA at ON-mode, TA=25°C, VCC=1.8V, VPON, ON=1.8V, VPON, OFF=0V, f=1550-1615MHz
- Insertion power gain is 17dB typ at TA=25°C, VCC=1.8V, VPON, ON=1.8V, VPON, OFF=0V, f=1575MHz
- Noise figure is 0.55dB typ at TA=25°C, VCC=1.8V, VPON, ON=1.8V, VPON, OFF=0V, f=1575MHz
- Ultra small TSNP-6-2 leadless package
- Ambient temperature range from -40 to 85°C
