GSP-830
Spectrum Analyser, Bench, 9kHz to 3GHz, 170 mm, 330 mm, 340 mm

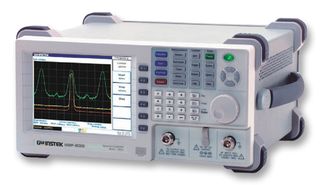

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Information
ManufacturerGW INSTEK
Manufacturer Part NoGSP-830
Order Code1563802
Technical Datasheet
Spectrum Analyzer TypeBench
Product Range-
Test Frequency Range9kHz to 3GHz
External Height170mm
External Width330mm
External Depth340mm
Weight6kg
Manufacturer Warranty-
Plug TypeEU, UK
SVHCNo SVHC (10-Jun-2022)
Alternatives for GSP-830
2 Products Found
Product Overview
A great value Spectrum Analyser with an outstanding noise floor level that presents extreme sensitivity for picking up weak signals. Further advanced features such as Auto Set, Split Windows, Power measurements and Pass/Fail settings make the GSP-830 an ideal solution for frequency spectrum analysis.
- 6.4" (640 x 480) high resolution colour TFT LCD screen
- 10 markers for peak functions, 5 markers for delta functions
- Split windows allows separate settings
- Users can define their own macros in 10 sequence steps
- Pause, Repeat or Single run modes
- ACPR, OCBW, Channel Power, N -dB, Phase jitter measurement
- Pass/Fail test with limit line editing
- USB and RS232 interface
- Direct VGA output
Technical Specifications
Spectrum Analyzer Type
Bench
Test Frequency Range
9kHz to 3GHz
External Width
330mm
Weight
6kg
Plug Type
EU, UK
Product Range
-
External Height
170mm
External Depth
340mm
Manufacturer Warranty
-
SVHC
No SVHC (10-Jun-2022)
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90303100
US ECCN:3A992.a
EU ECCN:NLR
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (10-Jun-2022)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):6
WEEE Code:0904
