B67345B0004X087
Transformer Cores, I, I 93/76/16, Power Transformers, N87, 258 mm, 448 mm²

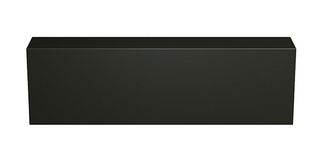

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB67345B0004X087
Order Code4167381
Product RangeB67345 Series
Technical Datasheet
1 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €11.190 |
| 3+ | €10.680 |
| 5+ | €10.170 |
| 10+ | €9.650 |
| 20+ | €9.140 |
| 50+ | €8.630 |
Price for:Each
Minimum: 1
Multiple: 1
€11.19 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB67345B0004X087
Order Code4167381
Product RangeB67345 Series
Technical Datasheet
Core TypeI
Core SizeI 93/76/16
Core Material GradeN87
For Use WithPower Transformers
Effective Magnetic Path Length258mm
Ae Effective Cross Section Area448mm²
Inductance Factor Al4.1µH
Product RangeB67345 Series
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Core Type
I
Core Material Grade
N87
Effective Magnetic Path Length
258mm
Inductance Factor Al
4.1µH
SVHC
No SVHC (21-Jan-2025)
Core Size
I 93/76/16
For Use With
Power Transformers
Ae Effective Cross Section Area
448mm²
Product Range
B67345 Series
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Czech Republic
Country in which last significant manufacturing process was carried out
Tariff No:85049017
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.6
Product traceability
WEEE Code:0000
