EA-PSI 9080-20 DT

Bench Power Supply, Programmable, 1 Output, 0 VDC, 80 VDC, 0 A, 20 A

EA ELEKTRO-AUTOMATIK EA-PSI 9080-20 DT
×
×

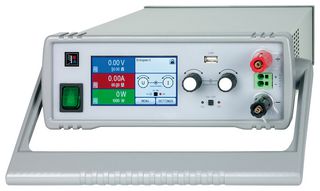

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
EA-PSI 9080-20 DT
Order Code:
2575821
Product Range
EA-PSI 9000 DT
See all Technical Docs

Product Range Selector (EA-PSI 9000 DT)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Programmable

:
1 Output

:
0VDC

:
80VDC

:
0A

:
20A

:
640W

:
90VAC

:
264VAC

:
2 Years

:
EA-PSI 9000 DT

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The EA-PSI 9080-20 DT from EA Elektro-Automatik is a low noise programmable DC power supply with touch sensitive TFT colour screen. This microprocessor controlled laboratory power supply is of series EA-PSI 9000 DT offers a user friendly, interactive handing concept along with a extensive set of standard features. This device's configuration of output parameters, supervisor features, other setting is smart and comfortable. For protection of the equipment connected, it is possible to set an overvoltage protection (OVP), one for over current (OCP), overpower (OPP) and over temperature protection (OT). It has a built in USB port, Ethernet (galv.isolated) and supports SCPI command language. The implemented supervision features for all output parameters can help to reduce test equipment and make it almost unnecessary to install external supervision hardware and software. The clear control panel with colour display and easy to handle with few finger touches.
  • Input supply range from 90V to 264V, power range from 0W to 640W
  • Output voltage range from 0V to 80V and output current range from 0A to 20A
  • Operation temperature range from 0°C to 50°C, efficiency of <= 91%
  • Intruitive touch panel with display for values, status and notification
  • Internal resistance simulation and regulation
  • Photovoltaic array simulation, integrated function generator
  • Desktop enclouse with carrying handle and tilt stand
  • Flexible, power regulated output stage
  • Discharge circuit (Uout < 60V in <= 10 S)
  • Dimension of 276mm x 103mm x 355mm (W x H x D)
  • Test Report Included (USB Stick)

Applications

Test & Measurement
