EC 55 25 PPAP
Capacitive Proximity Sensor, Type EC 5525, TRIPLESHIELD™, 25 mm, PNP, 10 to 40 Vdc, Pre-Wired

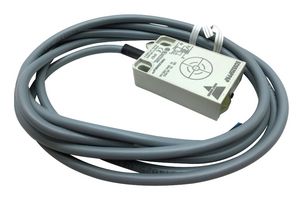

Image is for illustrative purposes only. Please refer to product description.
6 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €115.820 |
| 5+ | €113.500 |
| 10+ | €111.190 |
| 25+ | €108.870 |
| 50+ | €106.550 |
Price for:Each
Minimum: 1
Multiple: 1
€115.82 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCARLO GAVAZZI
Manufacturer Part NoEC 55 25 PPAP
Order Code7114953
Technical Datasheet
Sensor TypeCapacitive Proximity Sensor
Sensing Distance Min5mm
Sensing Range Max25mm
Sensing Distance Max25mm
Supply Voltage DC Min10V
Sensor Output TypePNP
Supply Voltage Min10VDC
Supply Voltage DC Max40V
Supply Voltage Max40VDC
Sensor Case / Package-
Sensor TerminalsCable
Sensor Body MaterialPC (Polycarbonate)
IP RatingIP67
Operating Temperature Min-25°C
Operating Temperature Max70°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The EC 55 25 PPAP is a capacitive Proximity Switch with sensing distance 16mm flush mounted and sensing distance 25mm non-flush mounted by adjustment. 4- wire DC output with both make (NO) and break (NC) switching. The device features easy mounting with only two M4 screws and ideal for use in material handling and plastic machinery applications.
- Featuring TRIPLESHIELD™ sensor protection
- 4 to 25mm Adjustable sensing distance
- 200mA DC, PNP output
- Make and break switching function
- LED indication
- High noise immunity
- Universal flush and non-flush mountable
Applications
Sensing & Instrumentation, Industrial
Technical Specifications
Sensor Type
Capacitive Proximity Sensor
Sensing Range Max
25mm
Supply Voltage DC Min
10V
Supply Voltage Min
10VDC
Supply Voltage Max
40VDC
Sensor Terminals
Cable
IP Rating
IP67
Operating Temperature Max
70°C
SVHC
No SVHC (21-Jan-2025)
Sensing Distance Min
5mm
Sensing Distance Max
25mm
Sensor Output Type
PNP
Supply Voltage DC Max
40V
Sensor Case / Package
-
Sensor Body Material
PC (Polycarbonate)
Operating Temperature Min
-25°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Denmark
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Denmark
Country in which last significant manufacturing process was carried out
Tariff No:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.125
WEEE Code:9900
