AFBR-57B4APZ
Fiber Optic Transceiver, 850 nm, 3.3 V, 50 Mbaud

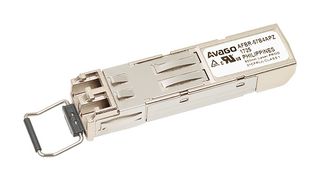

Image is for illustrative purposes only. Please refer to product description.
120 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €66.930 |
| 5+ | €61.500 |
| 10+ | €56.070 |
| 50+ | €54.950 |
Price for:Each
Minimum: 1
Multiple: 1
€66.93 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBROADCOM
Manufacturer Part NoAFBR-57B4APZ
Order Code2917843
Technical Datasheet
Wavelength Typ850nm
Supply Voltage3.3V
Data Rate Max50Mbaud
Product Range-
SVHCNo SVHC (12-Jan-2017)
Product Overview
DC-50 MBaud 850nm multimode LC duplex SFP transceiver suitable for use in Power substation automation, HVDC and industrial networking over multimode fibre.
- Single 3.3V power supply
- Manufactured in an ISO 9001 certified facility
- Link distance up to 2Km with 62.5µm/125µm multimode fibre
- Low current and low power dissipation
- Hot pluggable SFP connector
- Compatible with SFP MSA specification
- Class 1 FDA IEC60825-1 laser safety compliant
- Excellent EMI and EMC behaviour
- Integrated 850 nm VCSEL and driver IC with LVTTL input logic transmitter
- Integrated PIN diode and digitalizing IC with LVTTL output logic receiver
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Wavelength Typ
850nm
Data Rate Max
50Mbaud
SVHC
No SVHC (12-Jan-2017)
Supply Voltage
3.3V
Product Range
-
Technical Docs (2)
Alternatives for AFBR-57B4APZ
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
Country in which last significant manufacturing process was carried out
Tariff No:85176200
US ECCN:5A991.b.5.a
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (12-Jan-2017)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.035
WEEE Code:0000
