Product Information
ManufacturerAPEM
Manufacturer Part No9533CD
Order Code1082343
Product Range9000
Technical Datasheet
Product Range9000
Pushbutton Switch TypeStandard
Panel Cutout Diameter4.2mm
Contact ConfigurationSPST-NO
Contact Voltage DC Nom30V
Switch OperationOff-(On)
Contact Current Max100mA
Pushbutton Actuator StylePlunger
Actuator / Cap ColourBlack
Contact Current AC Max-
Contact Voltage VAC-
Contact Current DC Max100mA
Contact Voltage VDC30V
IP Rating-
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColourNon Illuminated
Panel Cutout (H x W)-
Product Overview

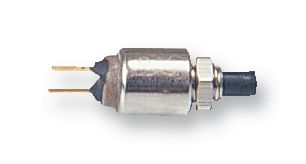

The 9533CD is a single-pole single-throw normally open sub miniature momentary Pushbutton Switch with threaded bushing, solder lugs terminals, glass-filled polyamide actuator, nickel-plated brass bushing, gold-plated brass contacts and Pa6T case.
- Self-cleaning contacts
- Epoxy sealed terminals standard
- With over travel
- 30mΩ maximum initial contact resistance
- 1000MΩ at 500VDC minimum insulation resistance
- -30 to +65°C operating temperature range
Applications
Industrial
Technical Specifications
Product Range
9000
Panel Cutout Diameter
4.2mm
Contact Voltage DC Nom
30V
Contact Current Max
100mA
Actuator / Cap Colour
Black
Contact Voltage VAC
-
Contact Voltage VDC
30V
Switch Mounting
Panel Mount
Illumination Colour
Non Illuminated
Pushbutton Switch Type
Standard
Contact Configuration
SPST-NO
Switch Operation
Off-(On)
Pushbutton Actuator Style
Plunger
Contact Current AC Max
-
Contact Current DC Max
100mA
IP Rating
-
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:France
Country in which last significant manufacturing process was carried out
Tariff No:85365011
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001261
WEEE Code:9900
