3-84952-0

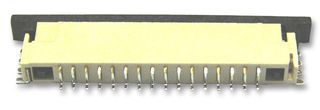

FFC / FPC Board Connector, 1 mm, 30 Contacts, Receptacle, Surface Mount, Bottom
Image is for illustrative purposes only. Please refer to product description.
95 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €2.090 |
| 30+ | €1.520 |
| 90+ | €1.480 |
| 240+ | €1.430 |
| 600+ | €1.190 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
€2.09 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No3-84952-0
Order Code1245277
Technical Datasheet
Pitch Spacing1mm
No. of Contacts30Contacts
Product Range-
Contact Termination TypeSurface Mount
Contact PositionBottom
No. of Rows1 Row
Contact PlatingTin Plated Contacts
Contact MaterialPhosphor Bronze
FFC / FPC Thickness0.3mm
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 3-84952-0 is a horizontal 30-position 1-row shrouded right-angle ZIF FPC/FFC Connector with tin-plated phosphor bronze contacts and a nature colour liquid crystal polymer housing. It is suitable for use with printed circuit board and flexible printed circuit (FPC) to reduce size and weight.
- Stuffer actuator
- Solder pads PCB mount retention
- Mating alignment
- 200VAC Operating voltage
Applications
Computers & Computer Peripherals, Consumer Electronics, Medical
Technical Specifications
Pitch Spacing
1mm
Gender
Receptacle
Contact Termination Type
Surface Mount
No. of Rows
1 Row
Contact Material
Phosphor Bronze
SVHC
No SVHC (21-Jan-2025)
No. of Contacts
30Contacts
Product Range
-
Contact Position
Bottom
Contact Plating
Tin Plated Contacts
FFC / FPC Thickness
0.3mm
