3-770060-1

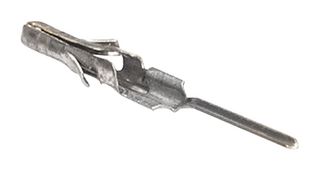

The 3-770060-1 is a miniature AMP-IN PCB Terminal made of phosphor bronze with bright pre-tin plated finish. This straight terminal is designed not as an electrical terminal but as a mechanical holding device to enhance soldering of hookup wires to printed circuit boards. The combination of terminal and application tooling eliminates costly manual preparation of wires prior to soldering and positions the wire to achieve reliable solder joints. Movement of the wire during soldering is restricted, providing for proper solder flow. It accepts 18 to 14AWG wire.

• Eliminates manual preparation of wires prior to soldering into PC boards
• Total height above PC board is less than most other components
• Terminal locking lance holds wire in PC board for flow soldering
• Design allows both wire and terminal to be soldered and assures proper solder flow
• Insulation support provides strain relief for wire and protection of solder joint

Applications

Industrial
