1-5747872-6

1-5747872-6 -AMP - TE CONNECTIVITY - D Sub Connector, DB15, Standard, Plug, AMPLIMITE HD-20 Series, 15 Contacts, DA, Solder

AMP - TE CONNECTIVITY 1-5747872-6

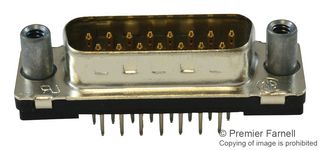

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
1-5747872-6
Order Code:
2526615
Product Range
AMPLIMITE HD-20 Series
Technical Datasheet:
1-5747872-6   Datasheet
See all Technical Docs

Product Range Selector (AMPLIMITE HD-20 Series)

See all from this product range

Product Overview

The AMPLIMITE HD-20 series Solder-cup D-sub Connectors with phosphor bronze duplex plated contacts with gold flash on mating end, tin on solder cup with entire contact nickel under-plated, thermoplastic inserts and steel, tin or zinc plated shell.
  • Preloaded duplex-plated solder cup contacts
  • Two-piece UL94V-0 rated plastic insert
  • Anti-solderwicking contact design
  • Intermateable with other subminiature D connectors
  • Available in 9, 15, 25 and 37 position (shell sizes 1-4) plugs and receptacles
  • Easy application without special application tools
  • Shields offer full EMI shielding and ESD insulation
  • Crimped shield termination for low impedance
  • Shield crimp provides strain relief
  • Shields may be post moulded or covered with enclosures

Applications

Communications & Networking, Computers & Computer Peripherals, Industrial

Warnings

Market demand for this product has caused an extension in lead times, delivery dates may fluctuate

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

:
15Contacts
:
Standard
:
Plug
:
DA
:
Solder
:
AMPLIMITE HD-20 Series
:
Carbon Steel Body
:
Through Hole Mount
:
Brass
:
Gold Plated Contacts
Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (4)

133 In stock Need more?

Order before 6pm

With you next business day

€7.28

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
