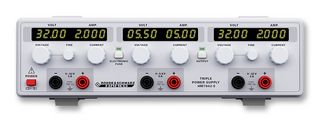

R&S HM7042-5

The HM7042-5 from Rohde & Schwarz is a triple power supply. It features separate voltage and current displays for each output: 4 digits at channel I + III, 3 digits at channel II. It has outputs of 2 x 0 to 32V and 0 to 5.5V: ON/OFF pushbutton control, SMPS followed by a linear regulator, floating outputs for parallel/serial operation, adjustable current limit and electronic fuse. The triple power supply's range: 2 x 0-32V, continuously adjustable 2 knobs (coarse/fine) at channel I + III (32V) and 0-5.5V, continuously adjustable (knobs) at channel II (5.5V). Device operate at mains supply of 115V/230V ±10% (50/60Hz) and mains fuse: 115V: 2 x 5A slow blow 5 x 20mm, 230V: 2 x 2.5A slow blow 5 x 20mm.

• Ripple: ≤ 100μVRMS (3Hz-300KHz) at Ch I + III (32V) and ≤ 100μVRMS (3Hz-300KHz) at Ch II (5.5V)
• Display 7-segment LED: 32V/2A (4 digit) at Ch I + III (32V), 5.5V/5A (3 digit) at Ch II (5.5V)
• Display resolution: 0.01V/1mA at Ch I + III (32V), 0.01V/10mA at ch II (5.5V)
• Max voltage applicable to output terminals (ON/OFF): 33V (Ch I + Ch III) and 6V (Ch II)
• 0.4V max reverse voltage, 5A max reverse current and 150V max voltage to earth
• Pushbutton for activating/deactivating all outputs
• Low residual ripple, high output power, very good regulation, temperature-controlled fan
• Safety class I (EN61010-1), max 330VA/250W power consumption
• Operating temperature range from 0°C to +40°C
• Dimension: 285mm x 75mm x 389mm (W x H x D) and weight: 7.4Kg

Applications

Test & Measurement, Maintenance & Repair

Contents

Power supply, Operator’s manual, Power cable.

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
