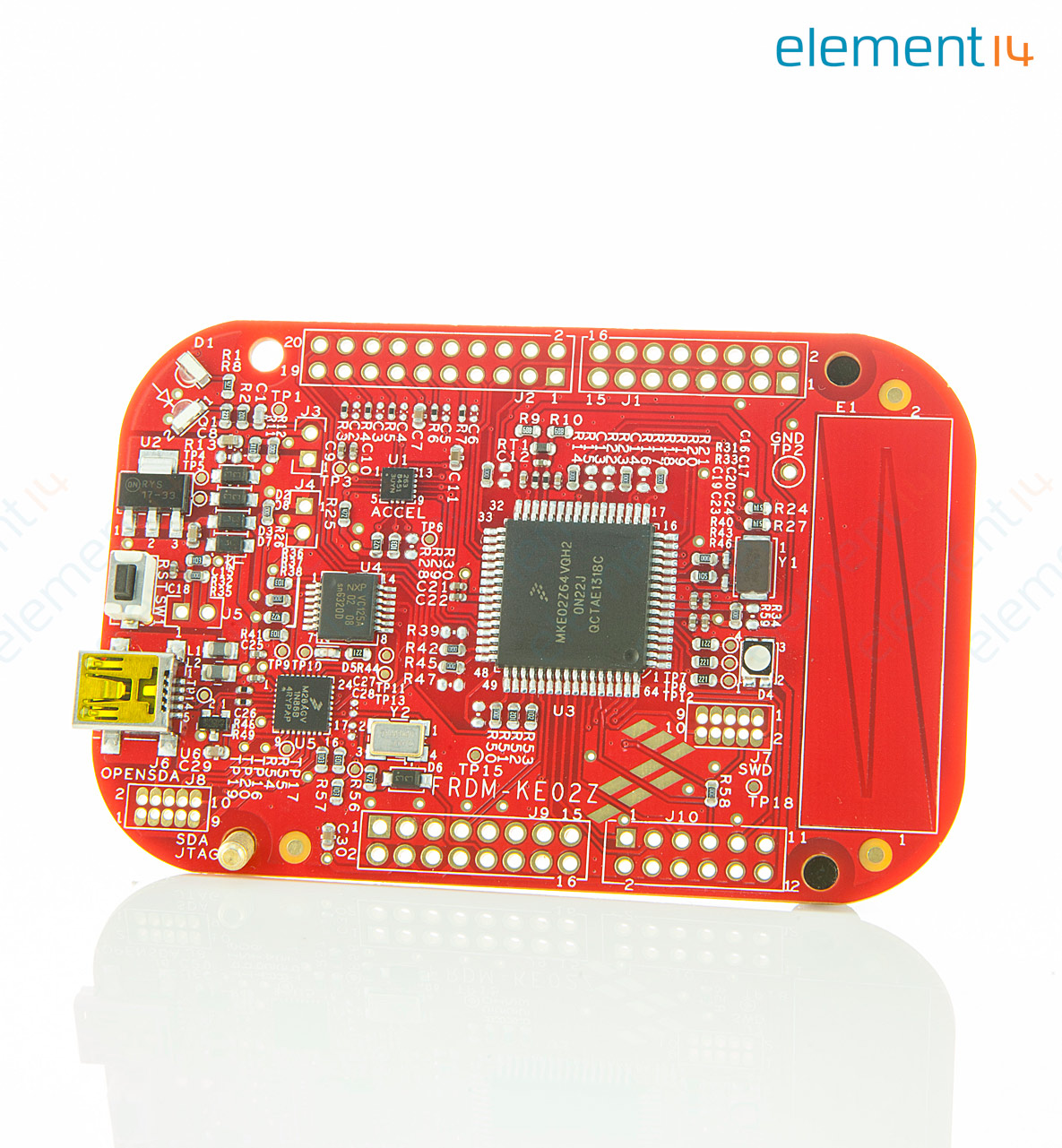

FRDM-KE02Z
Development Board, MKE02Z64VQH2 MCU, Capacitive Touch Slider, Accelerometer, Tri-Color LED
- Manufacturer:
- NXP NXP
- Manufacturer Part No:
- FRDM-KE02Z
- Order Code:
- 2341582
- Technical Datasheet:
- FRDM-KE02Z Datasheet
Alternatives for FRDM-KE02Z
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- NXP
- :
- 32bit
- :
- Kinetis - E
- :
- ARM
- :
- Cortex-M0+
- :
- KE02Z64VQH2
- :
- Eval Board KE02Z64VQH2
- :
- -
Technical Documents (3)
CAD Downloads
--Please select...
✔
--Please select...
×
Terms and Conditions
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
Product Overview
The FRDM-KE02Z is a freedom development platform for Kinetis MKE02Z64VQH2 microcontroller. The freedom development platform is a set of software and hardware tools for evaluation and development. It is ideal for rapid prototyping of microcontroller based applications. The freedom KE02Z hardware, FRDM-KE02Z, is a simple, yet sophisticated design featuring a Kinetis E series microcontroller, the industry's first 5V MCU built on the ARM Cortex-M0+ core. The Kinetis E series is the most scalable portfolio of low power, high robustness, mixed signal 32bit ARM Cortex-M0+ MCUs running up to 20MHz in the industry. It supports power supply voltage range from 2.7V to 5.5V, ambient operating temperature range from -40°C to 105°C and includes up to 64KB flash memory. The FRDM-KE02Z includes the open standard embedded serial and debug adapter known as OpenSDA. This circuit offers several options to the users for serial communications, flash programming, and run control debugging.
- Capacitive touch slider, MMA8451Q accelerometer, tricolor LED
- Flexible power supply options, USB and external source
- Easy access to microcontroller I/O
- IrDA transmitter and receiver
- Thermistor sensor to measuring temperature
- Form factor compatible with Arduino R3 pin layout
- OpenSDA debug interface
- Reset pushbutton
- Motor control function interface for simple BLDC motor control
- Tool installation not required to evaluate demo application
Applications
Consumer Electronics, Metering, Power Management, Industrial, Security
Contents
FRDM-KE02Z freedom board, Quick reference card.
Footnotes
The OpenSDA circuit is operational only when a USB cable is connected and is supplying power to OpenSDA USB connector.
