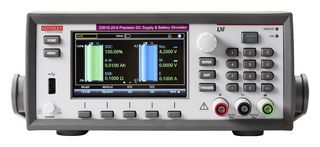

2281S-20-6 -KEITHLEY - Bench Power Supply, DC, Battery Simulator, Programmable, 1 Output, 0 V, 20 V, 0 A, 6 A

KEITHLEY 2281S-20-6
KEITHLEY 2281S-20-6
KEITHLEY 2281S-20-6
KEITHLEY 2281S-20-6

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Product Range
2281S Series
Technical Datasheet:
2281S-20-6   Datasheet
See all Technical Docs

Product Range Selector (2281S Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

1 Output
3 Years
2281S Series
Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (4)

Product Overview

The Series 2281S single channel, precision DC supply and battery simulator innovatively integrates the functions of high-precision power supply, battery charger, and battery simulator. It is able to analyze the DC consumption of a device under test, test a battery, and generate a battery model based on battery charging process and simulate a battery based on the battery model. The 2281S-20-6 can output up power to 20V and 6A and sink current up to 1A.
  • Manually create, edit, import, and export battery models
  • Measure voltage and current with 6½-digit resolution
  • Output up to 120W of low noise, linear regulated power
  • Provide two modes of simulation - dynamic and static
  • Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms
  • Digital I/O for direct communication with other devices and instruments
  • GPIB, USB, and LAN interfaces
  • Simulate a battery's output during the charge and discharge cycles
  • Monitor charge/discharge current and voltage
  • Display the real-time change of the SOC, Voc, and Vt for the simulated battery


Test & Measurement, Automotive, Avionics, Communications & Networking, Consumer Electronics, Aerospace, Defence, Military, Industrial, Instrumentation, Power Management, Medical


Precision DC Supply and Battery Simulator, 20V, 6A, quick start guide, Documentation CD, LAN Crossover Cable, Power Cord and Rear Panel Mating Connector with Cover


Do not lift the series 2280 from the front bezel. Lifting the instrument by the front bezel can cause instrument damage.
Best Seller

11 In stock Need more?

Order before 6pm

With you next business day


Pricing is unavailable. Please contact customer services.

Price for:
Multiple: 1 Minimum: 1
Quantity Price Your Price
1+ €2,990.00
