EVAL600W12VLLCC7TOBO1

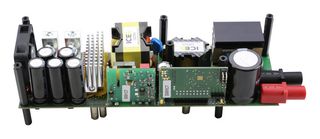

Evaluation board shows how to design the half-bridge LLC stage of a server SMPS with the target to meet 80+ Titanium® standard efficiency requirements. For this purpose, the following technologies has been used namely 600V CoolMOS™ C7 SJ MOSFET (IPP60R180C7) on the primary side and OptiMOS™ 40V low voltage power MOSFET in SuperSO8 (BSC010N04LS) in the synchronous rectification secondary stage, in combination with QR CoolSET™ (ICE2QR2280Z), EiceDRIVER™ 2EDL hi-low side driver (2EDL05N06PF), EiceDRIVER™ 2EDN low side gate driver (2EDN7524F) and an LLC controller (ICE2HS01G) for the analogue or XMC™ microcontroller (XMC4200) in the digital version. Targeted application is high efficiency Titanium® server SMPS. Target application is power supply.

• 12V output voltage
• 50A output current
• Peak efficiency at 50% load <gt/> 97.4%
• Efficiency at 10% load <gt/> 95%
