Our range of wireless charging coils includes one coil, two coil and three coil devices, with inductance from 2.5µH to 47µH.

Wireless charging coils are electronic components at the core of wireless charging technology; an approach which allows battery-operated mobile and portable devices to be recharged without need for cables or plugging in.

Broadly, there are three types of wireless charging. There are charging pads that use tightly coupled electromagnetic inductive or non-radiative charging; charging bowls or through-surface type chargers that use loosely coupled or radiative electromagnetic resonant charging that can transmit a charge a few centimetres; and uncoupled radio frequency (RF) wireless charging that allows a trickle charging capability at distances of many feet.

Both tightly coupled inductive and loosely coupled resonant charging operate on the same principle of physics: a time-varying magnetic field induces a current in a closed loop of wire.

Qi wireless charging coils are important because they comply with the Qi charging standard. This is not the only wireless charging method available, but it's the first one that is supported by two of the largest and most-influential smartphone makers: Samsung and Apple.

Applications of wireless charging coils

Wireless charging is currently being used in many applications including:

Smartphones and wearable technology
Notebooks and tablets
Power tools and service robots, such as vacuum cleaners
Multicopters and electric toys
Medical devices
In-car charging

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price	Quantity	Product Range	Inductance	Inductance Tolerance	DC Resistance Max	No. of Coils	No. of Layers	Saturation Current (Isat)	Self Resonant Frequency	Quality Factor	AC Current Rating	Product Length	Product Width	Product Height	Inductor Mounting	Operating Temperature Min	Operating Temperature Max
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending

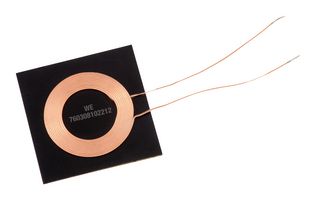

760308102212	2965269 Data Sheet + RoHS Date/Lot Code	Charging Coil, WE-WPCC, 5.4 µH, ± 10%, 0.24 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €8.11 2+ €7.96 3+ €7.81 5+ €7.66 10+ €7.51 20+ €6.20 50+ €5.92 100+ €5.64 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	5.4µH	± 10%	0.24ohm	1 Coil	1 Layer	-	25MHz	18@125kHz	-	29mm	29mm	0.64mm	Board Mount	-20°C	105°C
IWTX5050FEEB100KF1	3263658 Data Sheet + RoHS	Charging Coil, IWTX Series, 10 µH, ± 10%, 0.0297 ohm, 1 Coil, 2 Layers VISHAY You previously purchased this product. View in Order History	Each	1+ €5.06 5+ €4.85 10+ €4.64 25+ €4.21 50+ €3.30 160+ €2.80 800+ €2.37 1600+ €2.24 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	10µH	± 10%	0.0297ohm	1 Coil	2 Layers	-	-	200@100kHz	-	50mm	50mm	6.5mm	Board Mount	-40°C	85°C

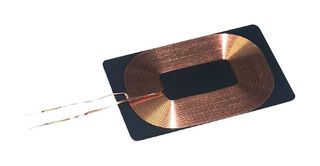

IWAS4832AEEB120KF1	3263653 Data Sheet + RoHS Date/Lot Code	Charging Coil, IWAS Series, 12 µH, ± 10%, 0.2 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ €2.70 10+ €2.13 50+ €1.94 100+ €1.75 200+ €1.36 540+ €1.14 2700+ €1.09 5400+ €1.07 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWAS Series	12µH	± 10%	0.2ohm	1 Coil	1 Layer	-	-	33@100kHz	-	32mm	48mm	1.5mm	Board Mount	-40°C	85°C
AWCCA-RX350300-101	2709585 Data Sheet + RoHS	Charging Coil, Compatible w/ Semtech 19V/20W Dual Mode TSDMRX chipset, AWCCA, 25 µH, ± 10% ABRACON You previously purchased this product. View in Order History	Each	1+ €3.51 10+ €3.24 25+ €2.49 50+ €2.35 100+ €2.21 300+ €1.59 1500+ €1.49 3000+ €1.46 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	AWCCA	25µH	± 10%	0.17ohm	1 Coil	2 Layers	-	-	85@100kHz	-	-	-	3mm	Board Mount	-25°C	85°C
AWCCA-RX483205-103	3224271 Data Sheet + RoHS	Charging Coil, AWCCA, 14.5 µH, ± 10%, 0.14 ohm, 1 Coil, 1 Layer ABRACON You previously purchased this product. View in Order History	Each	1+ €3.10 10+ €2.71 25+ €2.25 50+ €2.02 100+ €1.86	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	AWCCA	14.5µH	± 10%	0.14ohm	1 Coil	1 Layer	-	-	60@100kHz	-	32mm	48mm	1.6mm	Board Mount	-25°C	85°C

146179-8001	2913966 Data Sheet + RoHS	Charging Coil, PowerLife 146179, 2.9 µH, ± 2%, 0.12 ohm, 1 Coil, 1 Layer MOLEX You previously purchased this product. View in Order History	Each	1+ €10.55 2+ €10.35 3+ €10.15 5+ €9.95 10+ €9.75 20+ €9.22 50+ €8.91 100+ €8.60 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	PowerLife 146179	2.9µH	± 2%	0.12ohm	1 Coil	1 Layer	-	-	160@6.78MHz	-	56.3mm	71.51mm	1.15mm	Board Mount	-	-

IWAS4532AGEB140KF1	3263652 Data Sheet + RoHS	Charging Coil, IWAS Series, 14 µH, ± 10%, 0.355 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ €1.96 10+ €1.57 50+ €1.42 100+ €1.27 200+ €1.00 540+ €0.832 2700+ €0.808 5400+ €0.792 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWAS Series	14µH	± 10%	0.355ohm	1 Coil	1 Layer	-	-	24@100kHz	-	32mm	45mm	1.7mm	Board Mount	-40°C	85°C

760308102213	2965270 Data Sheet + RoHS Date/Lot Code	Charging Coil, WE-WPCC, 7.9 µH, ± 10%, 0.33 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €8.11 3+ €7.91 5+ €7.71 10+ €7.51 20+ €6.20 50+ €5.64 250+ €5.53 500+ €5.41 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	7.9µH	± 10%	0.33ohm	1 Coil	1 Layer	-	21MHz	18@125kHz	-	29mm	29mm	0.62mm	Board Mount	-20°C	105°C

IWTX47R0DAEB6R3JF1	3364904 Data Sheet + RoHS Date/Lot Code	Charging Coil, IWTX Series, 6.3 µH, ± 5%, 0.04 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ €5.80 10+ €5.08 25+ €4.21 50+ €3.77 100+ €3.48 240+ €3.25 1200+ €3.08 2400+ €2.96 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	6.3µH	± 5%	0.04ohm	1 Coil	1 Layer	22A	-	190@200kHz	7A	-	-	4.2mm	Board Mount	-40°C	105°C

760308102308	2777677 Data Sheet + RoHS	Charging Coil, WE-WPCC, 3 µH, ± 10%, 0.035 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €12.78 3+ €12.57 5+ €12.35 10+ €12.14 20+ €11.92 50+ €10.48 250+ €9.22 500+ €8.51 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	3µH	± 10%	0.035ohm	1 Coil	1 Layer	15A	27MHz	60@125kHz	-	30mm	50mm	2.4mm	Board Mount	-20°C	105°C

760308101221	2842209 Data Sheet + RoHS	Charging Coil, WE-WPCC, 24 µH, ± 10%, 1.15 ohm, 1 Coil WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €5.93 5+ €5.55 10+ €5.16 20+ €4.82 40+ €4.49 60+ €4.15 300+ €4.09 600+ €4.08 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	24µH	± 10%	1.15ohm	1 Coil	-	-	10MHz	16@125kHz	-	-	-	3.96mm	Board Mount	-20°C	105°C

146179-4011	2913965 Data Sheet + RoHS	Charging Coil, 5.6 µH (Tx), 9.6 µH (Rx), 146179, 9.6 µH, ± 2%, 0.55 ohm, 2 Coils, 1 Layer MOLEX You previously purchased this product. View in Order History	Each	1+ €10.22 2+ €10.03 3+ €9.84 5+ €9.64 10+ €9.45 20+ €8.94 50+ €7.91 100+ €7.66 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	146179	9.6µH	± 2%	0.55ohm	2 Coils	1 Layer	-	-	18@200kHz	-	-	-	-	Board Mount	-	-

146179-4001	2913964 Data Sheet + RoHS	Charging Coil, PowerLife 146179, 8.9 µH, ± 2%, 0.35 ohm, 2 Coils, 1 Layer MOLEX You previously purchased this product. View in Order History	Each	1+ €11.80 2+ €10.33 3+ €8.56 5+ €7.67 10+ €7.08	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	PowerLife 146179	8.9µH	± 2%	0.35ohm	2 Coils	1 Layer	-	-	25@200kHz	-	65.5mm	48.4mm	0.57mm	Board Mount	-	-

760308101311	3428260 Data Sheet + RoHS Date/Lot Code	Charging Coil, WE-WPCC, 5.8 µH, ± 10%, 0.014 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €20.33 2+ €19.79 3+ €19.26 5+ €18.72 10+ €16.58 20+ €16.12 50+ €15.80 100+ €15.48 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	5.8µH	± 10%	0.014ohm	1 Coil	1 Layer	30A	13MHz	220@125kHz	-	-	-	8.5mm	Board Mount	-20°C	105°C

IWTX5050DEEB100KF1	3263656 Data Sheet + RoHS Date/Lot Code	Charging Coil, IWTX Series, 10 µH, ± 10%, 0.0297 ohm, 1 Coil, 2 Layers VISHAY You previously purchased this product. View in Order History	Each	1+ €2.41	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	10µH	± 10%	0.0297ohm	1 Coil	2 Layers	-	-	200@100kHz	-	50mm	50mm	4.5mm	Board Mount	-40°C	85°C

146179-0001	3862519 Data Sheet	Charging Coil, PowerLife 146179 Series, 17.3 µH, ± 2%, 0.45 ohm, 1 Coil, 1 Layer MOLEX You previously purchased this product. View in Order History	Each	5+ €8.77 50+ €8.60 250+ €8.42 500+ €8.25 1000+ €8.07 1920+ €7.91 9600+ €7.75 19200+ €7.59 More Pricing...	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	PowerLife 146179 Series	17.3µH	± 2%	0.45ohm	1 Coil	1 Layer	-	-	-	-	43mm	50mm	0.63mm	Board Mount	-	-

760308100141	2448596 Data Sheet + RoHS Date/Lot Code	Charging Coil, Wireless, WE-WPCC, 10 µH, ± 10%, 0.03 ohm, 1 Coil, 1 Layer WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €17.26 2+ €17.05 3+ €16.84 5+ €16.63 10+ €16.42 20+ €16.03 50+ €14.48 100+ €13.98 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	10µH	± 10%	0.03ohm	1 Coil	1 Layer	16A	11MHz	180@125kHz	-	-	-	6mm	Board Mount	-20°C	105°C

IWTX47R0EBEB240JF1	3364905 Data Sheet + RoHS Date/Lot Code	Charging Coil, IWTX Series, 24 µH, ± 5%, 0.075 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ €6.59 10+ €5.76 25+ €4.78 50+ €4.28 100+ €3.95 240+ €3.69 1200+ €3.49 2400+ €3.36 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWTX Series	24µH	± 5%	0.075ohm	1 Coil	1 Layer	20A	-	200@200kHz	6A	-	-	5.26mm	Board Mount	-40°C	105°C

IWAS4832AAEB220JF1	3364901 Data Sheet + RoHS	Charging Coil, IWAS Series, 22 µH, ± 5%, 0.427 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ €7.03 10+ €5.26 50+ €4.69 100+ €4.11 200+ €3.23 540+ €3.17 2700+ €3.10 5400+ €3.04 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWAS Series	22µH	± 5%	0.427ohm	1 Coil	1 Layer	-	-	38@200kHz	-	32mm	48mm	1.6mm	Board Mount	-40°C	105°C

IWAS3222CZEB190JF1	3364897 Data Sheet + RoHS Date/Lot Code	Charging Coil, IWAS Series, 19 µH, ± 5%, 0.357 ohm, 1 Coil, 1 Layer VISHAY You previously purchased this product. View in Order History	Each	1+ €5.68 50+ €5.06 100+ €4.43 250+ €4.22 500+ €3.35 864+ €3.25 4320+ €3.16 8640+ €3.06 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWAS Series	19µH	± 5%	0.357ohm	1 Coil	1 Layer	2.4A	-	28.5@200kHz	-	22mm	32mm	3mm	Board Mount	-40°C	105°C

146179-2001 .	3565127 Data Sheet + RoHS	Charging Coil, PowerLife 146179, 10.6 µH, ± 2%, 0.19 ohm, 3 Coils, 1 Layer MOLEX You previously purchased this product. View in Order History	Each	5+ €8.61	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	PowerLife 146179	10.6µH	± 2%	0.19ohm	3 Coils	1 Layer	-	-	24@200kHz	-	64.7mm	53.7mm	1.6mm	Board Mount	-	-

760308101217	4132377 New product Data Sheet + RoHS Date/Lot Code	Charging Coil, WE-WPCC, 24.2 µH, ± 10%, 1.4 ohm, 1 Coil, 6 Layers WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €8.27 3+ €8.14 5+ €8.01 10+ €7.88 20+ €7.25 50+ €6.62 250+ €6.49 500+ €6.36 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	WE-WPCC	24.2µH	± 10%	1.4ohm	1 Coil	6 Layers	-	17.5MHz	13@125kHz	-	-	-	1.86mm	Board Mount	-20°C	105°C

WCT38466-N0E0SST101	4125604 New product Data Sheet + RoHS	Charging Coil, WCT Series, 10.6 µH, ± 0.5%, 0.149 ohm, 1 Coil, 1 Layer TDK You previously purchased this product. View in Order History	Each	1+ €46.28 5+ €40.50 10+ €33.56 25+ €30.08 50+ €27.78 200+ €25.92 1000+ €24.53 2000+ €23.61 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	0	0	± 0.5%	0.149ohm	1 Coil	1 Layer	-	-	-	-	0	0	-	Board Mount	-40°C	85°C

IWAS4832ABEB110JF1	3587972 Data Sheet + RoHS	WIRELESS CHARGING RECEIVE COIL, 11UH, 5% VISHAY You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape	1+ €6.81 10+ €5.91 25+ €5.31 50+ €4.86 100+ €4.40 500+ €3.86 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	IWAS Series	11µH	± 5%	0.187ohm	1 Coil	1 Layer	-	-	60@200kHz	-	32mm	48mm	1.7mm	Board Mount	-40°C	105°C

AWCCA-50N50H50-C01-B	2431216 Data Sheet + RoHS	Charging Coil, Wireless, AWCCA-50N50, 24 µH, ± 10%, 0.072 ohm, 1 Coil, 1 Layer ABRACON You previously purchased this product. View in Order History	Each	1+ €2.24	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	AWCCA-50N50	24µH	± 10%	0.072ohm	1 Coil	1 Layer	30A	2.8MHz	163@100kHz	5.7A	50mm	50mm	5mm	Board Mount	-25°C	85°C
