Our wide range of aluminium polymer capacitors allows designers to achieve high capacitance values cost-effectively

What is an aluminium polymer capacitor?

Aluminium polymer capacitors (also called polymer electrolytic capacitors or in short polymer e-caps) are a sub-form of electrolytic capacitors. Their special feature is that a conductive polymer is used instead of a liquid electrolyte. Additionally, electrolytic capacitors can have a hybrid construction - a combination of wet electrolyte and solid polymer. Aluminium electrolytic and aluminium polymer capacitors have very good resistance to voltage and temperature bias effects, along with very good aging characteristics.

In comparison to ceramic capacitors, aluminium polymer electrolytic capacitors offer significant advantages, especially their DC bias performance. In addition, the use of polymer capacitors allows increase of capacitance while maintaining cost. The special design process can also be used to significantly reduce the parasitic effects (especially ESL). This creates the potential to handle high ripple current, have low parasitic inductance, high reliability and very good temperature properties.

Panasonic Industry’s SVPF Series of conductive polymer aluminium solid capacitors offers high voltage capability (50V maximum), large capacitance of up to 1000µF, and 5000 hours’ operation at 105°C. They are RoHS compliant and halogen-free.

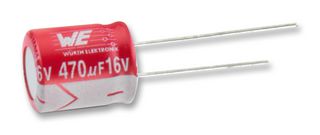

Würth Elektronik’s WCAP-PSLC aluminium polymer capacitor series offers large capacitance with low ESR over a wide frequency range and a high permissible ripple current. Its capacitance range is 10 µF ‒ 2000 µF with a capacitance tolerance of ±20 %. Voltage range (UR) is 6.3 ‒ 100 V(DC). Operating temperature is -55 °C up to +105 °C with 2000h @ +105 °C endurance.

Mounting style is V-Chip SMT.

Applications

Low ripple voltage at the switching converter
Filtering
Smoothing
Coupling
Also high-end power supply, industrial computer, VGA card, charger, digital set-top box

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price	Quantity	Capacitance	Voltage(DC)	Capacitor Case / Package	ESR	Lifetime @ Temperature	Capacitor Mounting	Capacitance Tolerance	Capacitor Terminals	Product Diameter	Ripple Current	Product Height	Product Length	Operating Temperature Min	Product Width	Operating Temperature Max	Product Range
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending
50SVPF18M	2354813 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 18 µF, 50 V, Radial Can - SMD, 0.035 ohm PANASONIC You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2354813 2806074 in Full Reel 2354813RL in Re-reel	1+ €0.947 50+ €0.853 100+ €0.759 250+ €0.678 500+ €0.597	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	18µF	50V	Radial Can - SMD	0.035ohm	5000 hours @ 105°C	Surface Mount	± 20%	Solder	8mm	2.7A	6.9mm	-	-55°C	-	105°C	OS-CON SVPF
870055775005	2466555 Data Sheet + RoHS Date/Lot Code	Polymer Aluminium Electrolytic Capacitor, 47 µF, 50 V, Radial Leaded, 0.035 ohm WURTH ELEKTRONIK You previously purchased this product. View in Order History	Each	1+ €3.25 10+ €3.06 50+ €2.86 100+ €2.49 200+ €2.23 600+ €1.85 3000+ €1.81 6000+ €1.78 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	47µF	50V	Radial Leaded	0.035ohm	2000 hours @ 105°C	Through Hole	± 20%	PC Pin	10mm	2A	12.5mm	-	-55°C	-	105°C	WCAP-PTHR
A765KN107M1ELAE024	2614172 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 100 µF, 25 V, Radial Can - SMD, 0.024 ohm KEMET You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2614172 2614172RL in Re-reel	10+ €0.566 50+ €0.528 100+ €0.49 500+ €0.357 1000+ €0.318 2000+ €0.299 4000+ €0.282 8000+ €0.281 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	100µF	25V	Radial Can - SMD	0.024ohm	2000 hours @ 105°C	Surface Mount	± 20%	SMD	8mm	3.3A	9.7mm	-	-55°C	-	105°C	A765 Series
A755KS476M1EAAE025	2614052 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 47 µF, 25 V, Radial Leaded, 0.025 ohm KEMET You previously purchased this product. View in Order History	Each	10+ €0.561 50+ €0.476 100+ €0.391 500+ €0.363 1000+ €0.26 2000+ €0.23 4000+ €0.225 8000+ €0.221 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	47µF	25V	Radial Leaded	0.025ohm	5000 hours @ 105°C	Through Hole	± 20%	Radial Leaded	8mm	2.32A	12mm	-	-55°C	-	105°C	A755 Series
A758KK827M0EAAE015	2614062 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 820 µF, 2.5 V, Radial Leaded, 0.015 ohm KEMET You previously purchased this product. View in Order History	Each	10+ €0.335 50+ €0.311 100+ €0.287 500+ €0.243 1000+ €0.195 2000+ €0.186 4000+ €0.182 8000+ €0.179 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	820µF	2.5V	Radial Leaded	0.015ohm	5000 hours @ 105°C	Through Hole	± 20%	Radial Leaded	8mm	4.1A	8mm	-	-55°C	-	105°C	A758 Series

2SEPC820MX	2354626 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 820 µF, 2.5 V, 0.007 ohm, 5000 hours @ 105°C, ± 20% PANASONIC You previously purchased this product. View in Order History	Each	1+ €0.824 5+ €0.696 10+ €0.567 25+ €0.529 50+ €0.491 200+ €0.371 1000+ €0.327 2000+ €0.306 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	820µF	2.5V	-	0.007ohm	5000 hours @ 105°C	Through Hole	± 20%	Radial Leaded	8mm	6.1A	9mm	-	-55°C	-	105°C	OS-CON SEPC

35SEPF120M	2354661 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 120 µF, 35 V, 0.018 ohm, 5000 hours @ 105°C, ± 20% PANASONIC You previously purchased this product. View in Order History	Each	1+ €1.57 5+ €1.38 10+ €1.19 25+ €1.04 50+ €0.887 200+ €0.747 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	120µF	35V	-	0.018ohm	5000 hours @ 105°C	Through Hole	± 20%	Radial Leaded	10mm	4.4A	13mm	-	-55°C	-	105°C	OS-CON SEPF

A758BG227M0JAAE018	2614072 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 220 µF, 6.3 V, Radial Leaded, 0.018 ohm KEMET You previously purchased this product. View in Order History	Each	10+ €0.179 100+ €0.116 500+ €0.107 1000+ €0.098 2000+ €0.086 4000+ €0.085 8000+ €0.083 20000+ €0.081 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	220µF	6.3V	Radial Leaded	0.018ohm	5000 hours @ 105°C	Through Hole	± 20%	Radial Leaded	5mm	2.5A	7mm	-	-55°C	-	105°C	A758 Series

A755BQ227M0JAAE018	2614037 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 220 µF, 6.3 V, Radial Leaded, 0.018 ohm KEMET You previously purchased this product. View in Order History	Each	10+ €0.199 100+ €0.129 500+ €0.119 1000+ €0.109 2000+ €0.098 4000+ €0.097 8000+ €0.096 20000+ €0.094 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	220µF	6.3V	-	0.018ohm	-	-	-	-	5mm	2A	11mm	-	-55°C	-	105°C	-

A768MS277M1GLAE022	3523789 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 270 µF, 40 V, Radial Can - SMD, 0.022 ohm KEMET You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:3523789 3523789RL in Re-reel	10+ €0.466 50+ €0.389 400+ €0.37 800+ €0.251 1200+ €0.246 2000+ €0.241 4000+ €0.236 8000+ €0.23 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	270µF	40V	Radial Can - SMD	0.022ohm	2000 hours @ 125°C	Surface Mount	± 20%	Solder	10mm	2.2A	12.2mm	-	-55°C	-	125°C	A768 Series

A768KS337M1ELAE019	3523778 Data Sheet + RoHS Date/Lot Code	Polymer Aluminium Electrolytic Capacitor, 330 µF, 25 V, Radial Can - SMD, 0.019 ohm KEMET You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:3523778 3523778RL in Re-reel	10+ €0.438 50+ €0.374 400+ €0.314 800+ €0.24 1200+ €0.234 2000+ €0.228 4000+ €0.222 8000+ €0.215 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	330µF	25V	Radial Can - SMD	0.019ohm	2000 hours @ 125°C	Surface Mount	± 20%	Solder	8mm	2.325A	12.2mm	-	-55°C	-	125°C	A768 Series

EEFCX0J151R	2358280 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 150 µF, 6.3 V, 2917 [7343 Metric], 0.015 ohm PANASONIC You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2358280 2358280RL in Re-reel	5+ €0.872 50+ €0.73 250+ €0.614 500+ €0.498 1500+ €0.488	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	150µF	6.3V	2917 [7343 Metric]	0.015ohm	1000 hours @ 105°C	Surface Mount	± 20%	L-Lead	-	5.1A	-	7.3mm	-40°C	4.3mm	105°C	SP-Cap CX

16SEPC220MD+S	2491757 Data Sheet + RoHS Date/Lot Code	Polymer Aluminium Electrolytic Capacitor, 220 µF, 16 V, Radial Leaded, 0.013 ohm PANASONIC You previously purchased this product. View in Order History	Each	1+ €0.87 50+ €0.762 100+ €0.653 250+ €0.574 500+ €0.494	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	220µF	16V	Radial Leaded	0.013ohm	5000 hours @ 105°C	Through Hole	± 20%	PC Pin	8mm	4.15A	7mm	-	-55°C	-	105°C	OS-CON SEPC

10SVPS10M	2491835 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 10 µF, 10 V, Radial Can - SMD, 0.22 ohm PANASONIC You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2491835 2491835RL in Re-reel	5+ €0.612 50+ €0.534 250+ €0.523	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	10µF	10V	Radial Can - SMD	0.22ohm	5000 hours @ 105°C	Surface Mount	± 20%	Solder	4mm	700mA	5.4mm	-	-55°C	-	105°C	OS-CON SVPS

EEFCX0D331R	2358262 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 330 µF, 2 V, 2917 [7343 Metric], 0.015 ohm PANASONIC You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2358262 2358262RL in Re-reel 2806086 in Full Reel	5+ €0.951 50+ €0.755 250+ €0.63 500+ €0.504 1500+ €0.494	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	330µF	2V	2917 [7343 Metric]	0.015ohm	1000 hours @ 105°C	Surface Mount	± 20%	SMD	-	5.1A	-	7.3mm	-40°C	4.3mm	105°C	SP-Cap CX

A755KS227M1EAAE025	2614054 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 220 µF, 25 V, Radial Leaded, 0.025 ohm KEMET You previously purchased this product. View in Order History	Each	10+ €0.426 50+ €0.396 100+ €0.365 500+ €0.288 1000+ €0.243 2000+ €0.233 4000+ €0.228 8000+ €0.224 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	220µF	25V	Radial Leaded	0.025ohm	5000 hours @ 105°C	Through Hole	± 20%	Radial Leaded	8mm	3A	12mm	-	-55°C	-	105°C	A755 Series

25SVPK470M	2759084 Data Sheet + RoHS Date/Lot Code	Polymer Aluminium Electrolytic Capacitor, 470 µF, 25 V, Radial Can - SMD, 0.014 ohm PANASONIC You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2759084 2759084RL in Re-reel	1+ €2.72 10+ €1.95 50+ €1.72 100+ €1.49 200+ €1.37 400+ €1.26 2000+ €1.14 4000+ €1.02 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	470µF	25V	Radial Can - SMD	0.014ohm	1000 hours @ 125°C	Surface Mount	± 20%	Solder	10mm	1.59A	12.6mm	-	-55°C	-	125°C	OS-CON SVPK

A750BG227M0JAAE020	2614001 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 220 µF, 6.3 V, Radial Leaded, 0.02 ohm KEMET You previously purchased this product. View in Order History	Each	10+ €0.151 100+ €0.097 500+ €0.089 1000+ €0.081 2000+ €0.073 4000+ €0.072 8000+ €0.071 20000+ €0.07 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	220µF	6.3V	-	0.02ohm	-	-	-	-	5mm	2.5A	7mm	-	-55°C	-	105°C	-

MAL218097504E3	2520810 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 100 µF, 16 V, Radial Can - SMD, 2500 hours @ 105°C VISHAY You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2520810 2520810RL in Re-reel	1+ €1.44 50+ €1.26 100+ €1.04 250+ €0.936 500+ €0.862 1000+ €0.805 5000+ €0.761 10000+ €0.733 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	100µF	16V	Radial Can - SMD	-	2500 hours @ 105°C	Surface Mount	± 20%	Solder	6.3mm	2.49A	6.6mm	6.6mm	-55°C	-	105°C	180 CPS

16SVPG270M	2753030 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 270 µF, 16 V, Radial Can - SMD, 0.008 ohm PANASONIC You previously purchased this product. View in Order History	Each (Supplied on Full Reel) Full Reel Packaging Options Suggested replacement for:2753030 2491823 in Cut Tape 2491823RL in Re-reel	500+ €0.793 2500+ €0.777 5000+ €0.761	Restricted Item Minimum order of 500 items Multiples of 500 only Please enter a valid quantity Add Min: 500 Mult: 500	270µF	16V	Radial Can - SMD	0.008ohm	5000 hours @ 105°C	Surface Mount	± 20%	Solder	6.3mm	5.8A	9.9mm	-	-55°C	-	105°C	OS-CON SVPG

A750KK337M1CAAE014	2614021 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 330 µF, 16 V, Radial Leaded, 0.014 ohm KEMET You previously purchased this product. View in Order History	Each	10+ €0.266 100+ €0.172 500+ €0.162 1000+ €0.152 2000+ €0.149 4000+ €0.146 8000+ €0.143 20000+ €0.14 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	330µF	16V	Radial Leaded	0.014ohm	2000 hours @ 105°C	Through Hole	± 20%	Radial Leaded	8mm	5A	8mm	-	-55°C	-	105°C	A750 Series

MAL218497803E3	2836997 Data Sheet + RoHS Date/Lot Code	Polymer Aluminium Electrolytic Capacitor, 22 µF, 63 V, Radial Can - SMD, 0.035 ohm VISHAY You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2836997 2836997RL in Re-reel	10+ €1.85 100+ €1.18 500+ €1.11 2500+ €1.09 5400+ €1.07 10800+ €1.04 54000+ €1.02 108000+ €0.999 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	22µF	63V	Radial Can - SMD	0.035ohm	2000 hours @ 105°C	Surface Mount	± 20%	Solder	8mm	1.8A	8mm	-	-55°C	-	105°C	184 CPNS

A759KS335M2EAAE512	2614116 Data Sheet + RoHS	Polymer Aluminium Electrolytic Capacitor, 3.3 µF, 250 V, Radial Leaded, 0.512 ohm KEMET You previously purchased this product. View in Order History	Each	1+ €1.15 10+ €0.796 50+ €0.741 100+ €0.685 500+ €0.516 1000+ €0.455 2000+ €0.419 4000+ €0.407 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	3.3µF	250V	Radial Leaded	0.512ohm	2000 hours @ 125°C	Through Hole	± 20%	Radial Leaded	8mm	450mA	12mm	-	-55°C	-	125°C	A759 Series

16SEF1000M	2759039 Data Sheet + RoHS Date/Lot Code	Polymer Aluminium Electrolytic Capacitor, 1000 µF, 16 V, Radial Leaded, 0.012 ohm PANASONIC You previously purchased this product. View in Order History	Each	1+ €2.58 5+ €2.10 10+ €1.62 25+ €1.53 50+ €1.44 200+ €1.07 1000+ €0.93 2000+ €0.903 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	1000µF	16V	Radial Leaded	0.012ohm	1000 hours @ 125°C	Through Hole	± 20%	PC Pin	10mm	1.7A	13mm	-	-55°C	-	125°C	OS-CON SEF

16SVF82M	2759060 Data Sheet + RoHS Date/Lot Code	Polymer Aluminium Electrolytic Capacitor, 82 µF, 16 V, Radial Can - SMD, 0.027 ohm PANASONIC You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2759060 2759060RL in Re-reel	1+ €0.693 50+ €0.646 100+ €0.599 250+ €0.50 500+ €0.401 1500+ €0.356 7500+ €0.343 15000+ €0.336 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	82µF	16V	Radial Can - SMD	0.027ohm	1000 hours @ 125°C	Surface Mount	± 20%	Solder	5mm	940mA	5.9mm	-	-55°C	-	125°C	OS-CON SVF
