XP POWER  JCK2012S12  Isolated Board Mount DC/DC Converter, 2:1 Input, Fixed, 1 Output, 9 V, 18 V, 20 W, 12 V

XP POWER JCK2012S12
XP POWER JCK2012S12
XP POWER JCK2012S12
Manufacturer:
XP POWER XP POWER
Manufacturer Part No:
JCK2012S12
Order Code:
1738248
Product Range
JCK20 Series
Technical Datasheet:
See all Technical Docs
XP POWER JCK2012S12
XP POWER JCK2012S12
XP POWER JCK2012S12

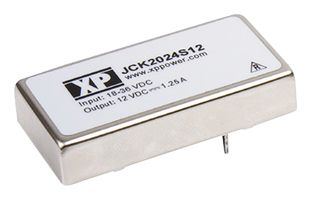

Image is for illustrative purposes only. Please refer to product description.

Product Overview

  • 2:1 Input Range
  • -40°C to +100°C Operating Temperature
  • Overvoltage & Overcurrent Protection
  • High Efficiency - up to 93%
  • 1500 VDC Isolation

Product Information

DC / DC Converter Output Type:
Fixed
No. of Outputs:
1 Output
Input Voltage DC Min:
9V
Input Voltage DC Max:
18V
Output Power Max:
20W
Output Voltage - Output 1:
12V
Output Voltage - Output 2:
-
Output Current - Output 1:
1.67A
Output Current - Output 2:
-
DC / DC Converter Type:
DIP
DC / DC Converter Mounting:
Through Hole
Approvals & Standards:
-
Width:
25.4mm
Height:
10.2mm
Depth:
50.8mm
Output Voltage - Output 3:
-
Output Current - Output 3:
-
Product Range:
JCK20 Series
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Legislation and Environmental

Country of Origin:
Taiwan

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85044090
Weight (kg):
.03
