PP001260 -

Wire, Stranded, Tri Rated, PVC, Orange, 12 AWG, 4 mm², 328 ft, 100 m

PP001260 - Wire, Stranded, Tri Rated, PVC, Orange, 12 AWG, 4 mm², 328 ft, 100 m
PP001260 - Wire, Stranded, Tri Rated, PVC, Orange, 12 AWG, 4 mm², 328 ft, 100 m

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
PRO POWER PRO POWER
Manufacturer Part No:
PP001260
Order Code:
2501506
Product Range
Tri-Rated Cable
Technical Datasheet:
(EN)
See all Technical Docs

Product Information

:
PVC
:
Orange
:
12AWG
:
4mm²
:
328ft
:
100m
:
56 x 0.3mm
:
600V
:
Copper
:
4.35mm
:
BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332, CSA C22.2 No. 210, UL 758
:
Tri-Rated Cable
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

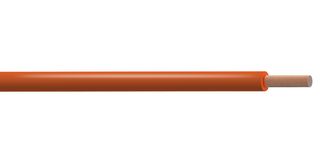

The PP001260 from Pro Power is a single core orange colour tri-rated, 12AWG flexible PVC equipment wire with 100m reel length. This high temperature, flame retardant wire is designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connection in rectifier equipment, motor starters and controllers.
  • CPR: Eca
  • Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
  • PVC (Polyvinyl chloride) type TI3 insulation according to BS EN 50363
  • 4mm² nominal cross section area
  • Nominal thickness of insulation is 0.8mm
  • Nominal overall diameter is 4.35mm
  • Nominal weight of 48Kg/Km
  • Meets BS 6231 Type CK, BS EN 50525-2-31, BS EN/IEC 60332 cable standards
  • CSA C22.2 No. 210 and UL 758 listed
  • Voltage rating of 450/750V (Uo/U) with respect to UL and CSA standards
  • Maximum temperature rating of 105°C with respect to UL and CSA standards

Applications

Industrial
