PRO POWER  PP000934  Multipair Screened Cable, BS5308 Instrumentation, Black, 2 Pair, 0.75 mm², 164 ft, 50 m

PRO POWER PP000934
PRO POWER PP000934
Technical Data Sheet (175.32KB) EN See all Technical Docs

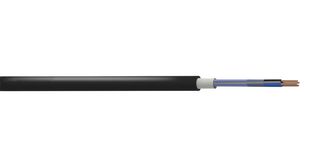

Image is for illustrative purposes only. Please refer to product description.

PRO POWER PP000934
PRO POWER PP000934

Product Overview

The PP000934 is a 50m 0.75mm² 2-pair BS 5308 part-1 type-1 LSZH shielded Screened Cable with class-1 solid, class-5 flexible copper conductors according to BS EN 60228 and cross-linked polyethylene insulation. It has tinned copper drain wire and shielded with aluminium-polyester tape. It is designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. These cables are designed to form part of an intrinsically safe system. It is generally designed for indoor use and in environments where mechanical protection is not required.
  • -30 to 90°C Temperature range

Product Information

Jacket Colour:
Black
No. of Pairs:
2 Pair
Wire Gauge:
-
Conductor Area CSA:
0.75mm²
Reel Length (Imperial):
164ft
Reel Length (Metric):
50m
No. of Max Strands x Strand Size:
-
Voltage Rating:
500V
Jacket Material:
LSZH
Conductor Material:
Copper
External Diameter:
8.4mm
Product Range:
-
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Sensing & Instrumentation;
  • Computers & Computer Peripherals;
  • Communications & Networking;
  • Audio;
  • Mining, Oil & Gas;
  • Industrial

Legislation and Environmental

Country of Origin:
Italy

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85444995
Weight (kg):
9.3
