MOLEX  08-65-0813  Contact, KK® 254, 6459 Series, Socket, Crimp, 22 AWG, Gold Plated Contacts

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
08-65-0813
Order Code:
1441965
Product Range
6459 Series
Technical Datasheet:
See all Technical Docs
MOLEX 08-65-0813
Video

Image is for illustrative purposes only. Please refer to product description.

Product Overview

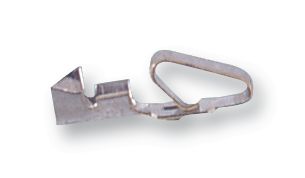

The 08-65-0813 is a Standard Crimp Terminal made of phosphor bronze with gold-plated finish. It accepts 22 to 30AWG wire. It can be suitable for use with 2.54mm pitch KK® crimp terminal housing 2695.

Product Information

Product Range:
6459 Series
Contact Gender:
Socket
Contact Termination Type:
Crimp
Wire Size AWG Max:
22AWG
Contact Plating:
Gold Plated Contacts
For Use With:
KK Series Crimp Terminal Housings
Wire Size AWG Min:
30AWG
Contact Material:
Phosphor Bronze
SVHC:
To Be Advised

Find similar products  grouped by common attribute

Applications

  • Industrial

Legislation and Environmental

Country of Origin:
Singapore

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85369010
Weight (kg):
.00001
