LASCAR  EL-USB-4  Data Logger, 32000, EasyLog

LASCAR EL-USB-4
Manufacturer:
LASCAR LASCAR
Manufacturer Part No:
EL-USB-4
Order Code:
1006158
Product Range
EasyLog
Technical Datasheet:
See all Technical Docs

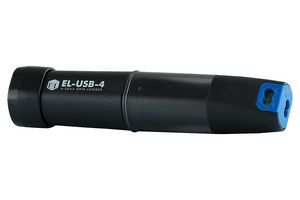

Image is for illustrative purposes only. Please refer to product description.

Product Overview

Measures and stores up to 32,000 current loop readings over a 4-20mA d.c. measurement range. The user can easily set up the logging rate and start time, and download the stored data by plugging the module into a PC's USB port and running the supplied software. The data can then be graphed, printed and exported to other applications. Correct functioning of the unit is indicated by a flashing red and green LED.
  • 4-20mA d.c. Current Loop Measurement Range
  • Stores 32,000 readings
  • Supplied software supports Windows 98SE/2000/XP
  • USB Interface for Set-up and Data Download
  • User-Programmable Alarm Thresholds
  • Red and Green LED Status Indication
  • At least one years continuous operation from supplied lithium battery

Product Information

Reading Capacity:
32000
Product Range:
EasyLog
External Width:
27
Operating Temperature Min:
-35
Operating Temperature Max:
80
Current Min:
4
External Length / Height:
27
Current Max:
20
SVHC:
No SVHC (15-Jun-2015)
External Depth:
112

Find similar products  grouped by common attribute

Contents

Set of measurement leads terminating in crocodile clips.

Legislation and Environmental

Country of Origin:
Switzerland

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
90291000
Weight (kg):
.113398
