MCB2140U -

WITH ULINK2, EVALUATION KIT

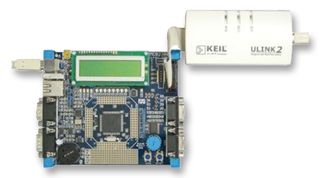

MCB2140U - WITH ULINK2, EVALUATION KIT
MCB2140U - WITH ULINK2, EVALUATION KIT

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEIL KEIL
Manufacturer Part No:
MCB2140U
Order Code:
2310021
Technical Datasheet:
(EN)
See all Technical Docs

Product Overview

MCB2140U is a Keil MCB2140 evaluation board with ULINK2 debug adapter. Board enables to create and test working programs based on the NXP LPC2140 ARM processor based device. Board connects to PC using the serial port for flash download using Flash Magic or the JTAG interface for program debug using a Keil ULINK family USB-JTAG adapter and the uVision IDE and debugger. An on chip USB interface, two serial interfaces, a speaker, analog input (via potentiometer), and eight LEDs make this board a great starting point for ARM project. The prototyping area provides blocks for connecting the address and data line, ports and ground. The NXP LPC214x microcontroller provided with the MCB2140 board is a high end LPC214x device with advanced ADC, DAC and USB capabilities. A 12MHz crystal provides the clock signal for the CPU. ULINK2 debug adapter connects PC's USB port to target system and allows to program and debug embedded programs on target hardware.
  • USB 2.0 full speed interface
  • Dual serial ports
  • LF amplifier
  • Analog voltage control for ADC input
  • JTAG download and debug

Applications

Industrial, Medical

Contents

Board, ULINK2 debug adapter, MDK-ARM evaluation tools.

Product Information

:
NXP
:
32bit
:
LPC21xx
:
ARM
:
ARM7
:
LPC2140
:
Eval Board LPC2140, Quick Start Guide, ULINK2 Debug Adapter
:
-
