ARDUINO - A000048 - MCU, 8BIT, ATMEGA, 20MHZ, DIP-28

ARDUINOA000048

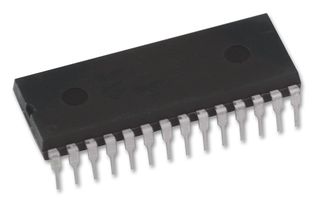

Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
ARDUINO
Order Code:
1848694
Manufacturer Part No:
A000048

Technical Data Sheet (120.14KB) EN
Technical Data Sheet (120.14KB) EN

Product Information
  • MCU, 8BIT, ATMEGA, 20MHZ, DIP-28
  • Accessory Type: Pre-Programmed IC
  • For Use With: Arduino UNO Based Circuits
  • Features: ATmega328 MCU IC with Arduino UNO Bootloader Pre-programed
  • SVHC: No SVHC (16-Dec-2013)
  • CPU Speed: 20MHz
  • Controller Family/Series: ATmega
  • Core Size: 8bit
  • EEPROM Memory Size: 1KB
  • Embedded Interface Type: I2C, SPI, UART
  • MSL: -
  • No. of I/O's: 23
  • No. of PWM Channels: 6
  • No. of Timers: 3
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Oscillator Type: External, Internal
  • Packaging: Each
  • Peripherals: ADC, PWM, RTC, Timer
  • Program Memory Size: 32KB
  • Program Memory Size: 32KB
  • RAM Memory Size: 2KB
  • Supply Voltage Max: 5.5V
  • Supply Voltage Min: 1.8V
  • Supply Voltage Range: 1.8V to 5.5V
ATMega328 is the ATMEL Microcontroller on which Arduino UNO is based. This product allows you to realise your small project without using a full size Arduino board. To make this microcontroller working with the Arduino IDE you need a 16Mhz crystal, a 5 V power supply and a serial connection.
Find Similar Products grouped by common attributes

Availability

346 in stock for next working day delivery (UK stock)
296 in stock for next working day delivery (EU stock)
see cut-off times
346 UK Stock: Order before 18:30 (for re-reeled items 16:30) Mon-Fri (excluding National Holidays)
296 European Stock: Order before 18:30 (for re-reeled items 16:30) Mon-Fri (excluding National Holidays)

Price For: 1 Each

Minimum Order Quantity: 1

Order Multiple: 1

Unit Price: €4.73

  1. Qty

Price

Qty List Price
1+  €4.73
