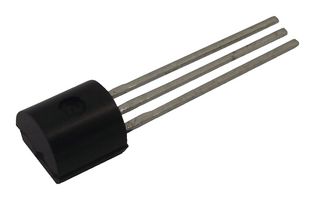

ANALOG DEVICES - TMP36GT9Z - IC, SENSOR, TEMP, TO-92-3

ANALOG DEVICESTMP36GT9Z
Image is for illustrative purposes only.
Please refer to product description
Manufacturer:
ANALOG DEVICES
Order Code:
1438760
Manufacturer Part No:
TMP36GT9Z

Technical Data Sheet (360.95KB) EN
Technical Data Sheet (360.95KB) EN

Product Information
  • IC, SENSOR, TEMP, TO-92-3
  • IC Output Type: Voltage
  • Sensing Accuracy Range: ± 3°C
  • Sensing Temperature Min: -40°C
  • Sensing Temperature Max: +125°C
  • Supply Voltage Min: 2.7V
  • Supply Voltage Max: 5.5V
  • Sensor Case Style: TO-92
  • No. of Pins: 3
  • Packaging: Each
  • MSL: MSL 1 - Unlimited
  • Operating Temperature Max: 125°C
  • Operating Temperature Range: -40°C to +125°C
  • Output Voltage: 750mV
  • Output Voltage per °C: 10mV/°C
  • SVHC: No SVHC (16-Dec-2013)
  • Sensor / Transducer Type: Temperature
  • Supply Current: 50µA
  • Supply Voltage Range: 2.7V to 5.5V
  • Temperature Sensing Range: -40°C to +125°C
  • Termination Type: Through Hole
±3°C Precision Low Voltage Temperature Sensor in TO-92-3 Package
The TMP36 is a low voltage, precision centigrade temperature sensors. It provides a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 does not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the ?40°C to +125°C temperature range. The low output impedance of the device and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs.
  • Calibrated directly in °C
  • ±2°C accuracy over temperature (typical)
  • ±0.5°C linearity (typical)
  • Stable with large capacitive loads
  • Less than 50 ?A quiescent current
  • Shutdown current 0.5 uA max
